Yamaha DHR10 - 10" Active PA Speaker

Yamaha DHR10 - 10" Active PA Speaker

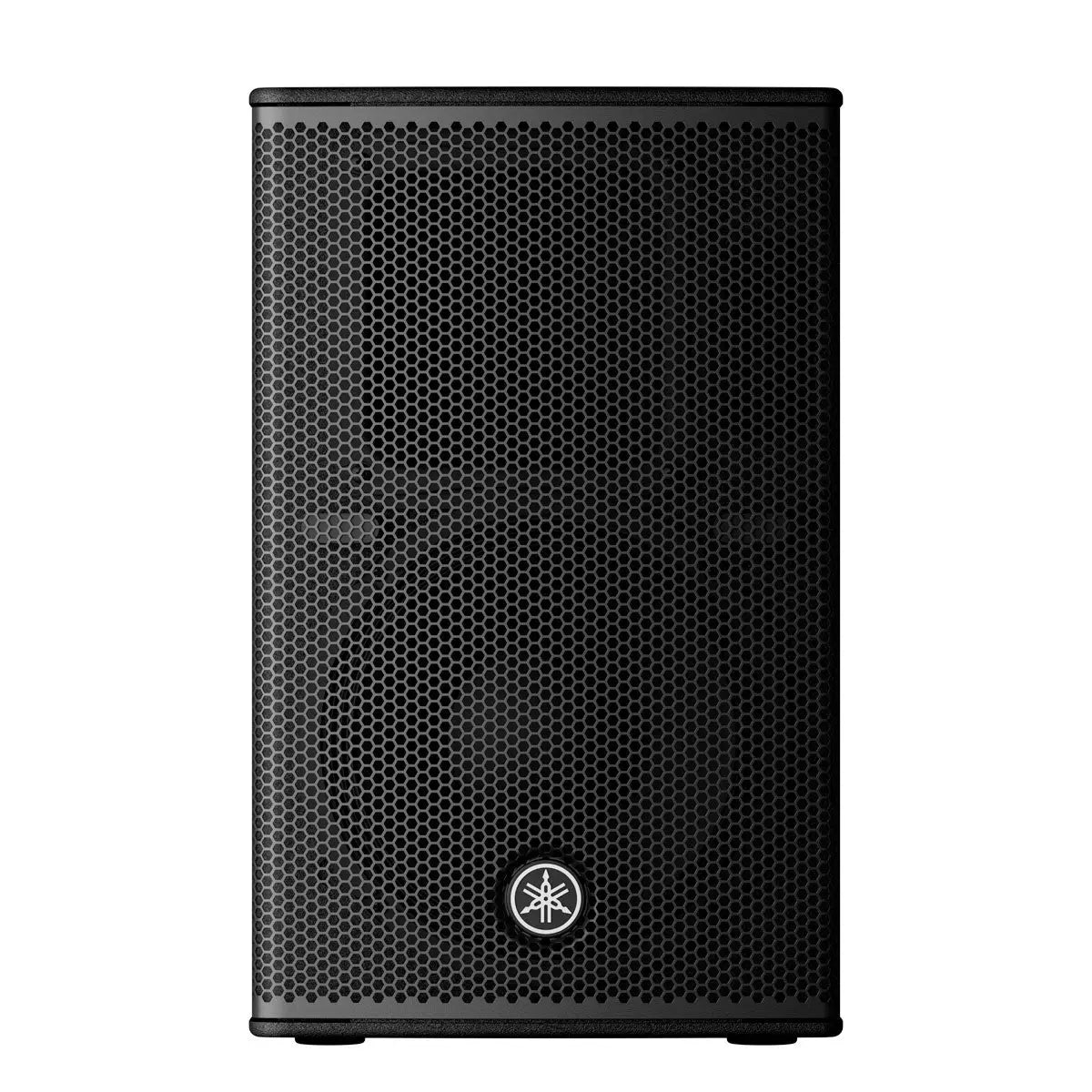

The Yamaha DHR10 is an active 10" PA speaker designed to elevate sound reinforcement with professional quality, accuracy, and performance. It features a durable plywood cabinet, powered by a 700W Class-D amplifier, capable of producing a respectable 127dB SPL. This model is specifically optimized for fixed installation and utility applications, offering stunning sound quality and clarity.

Key Features

• Plywood Cabinet: Premium plywood enclosure finished in a tough polyurea coating for outstanding durability and acoustic performance.
• High-Efficiency Class-D Amplifier: Powered by a 700W Class-D amplifier, delivering a respectable 127dB SPL.

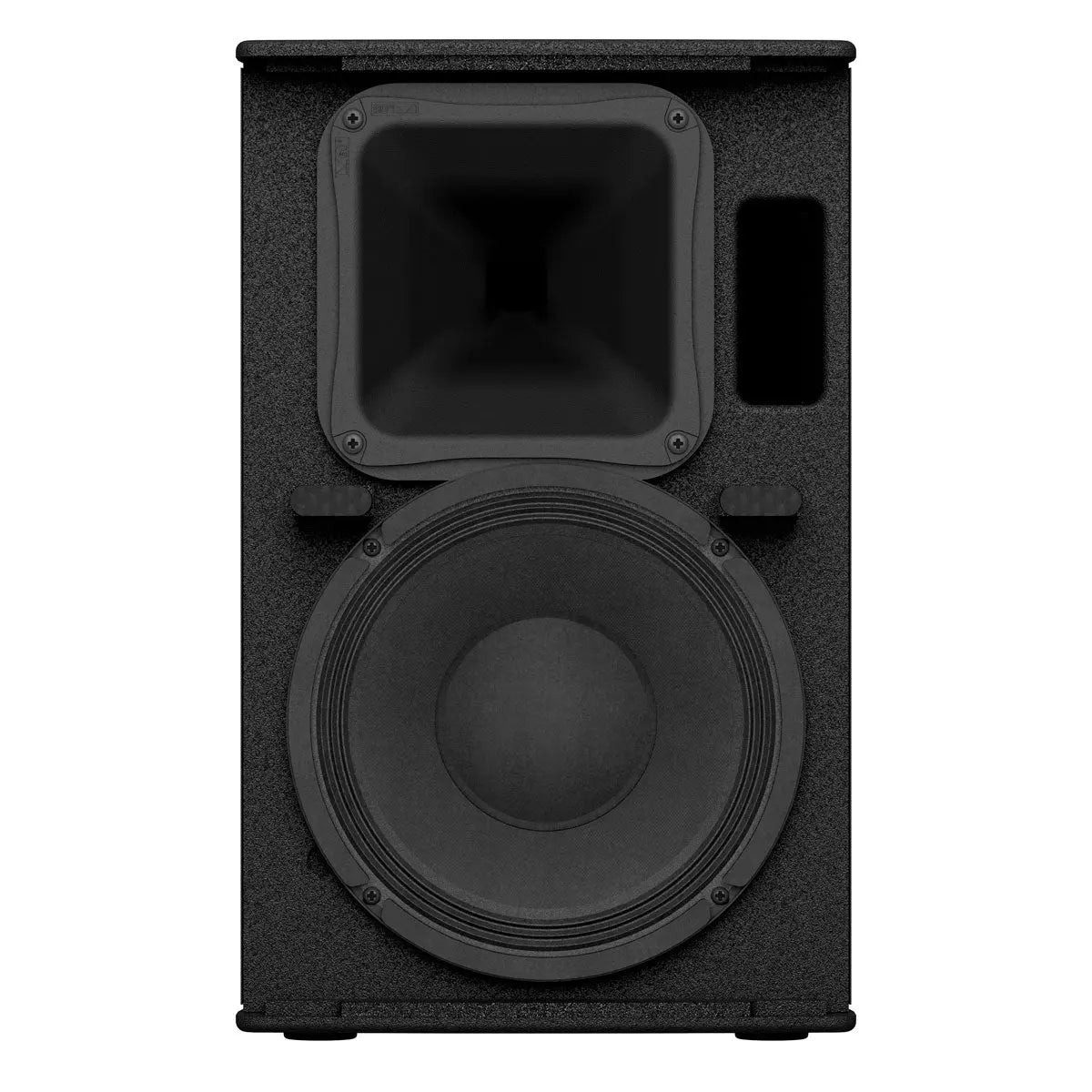

• Custom Designed Transducers: Features a high power output woofer for well-defined, powerful bass with minimal distortion, and a 1.4" precision compression driver for accurate mid-range and high frequencies.
• Optimized Cabinet Design: The 10" model is equipped with rotating horns and a dedicated U-bracket for use in fixed installations and utility.

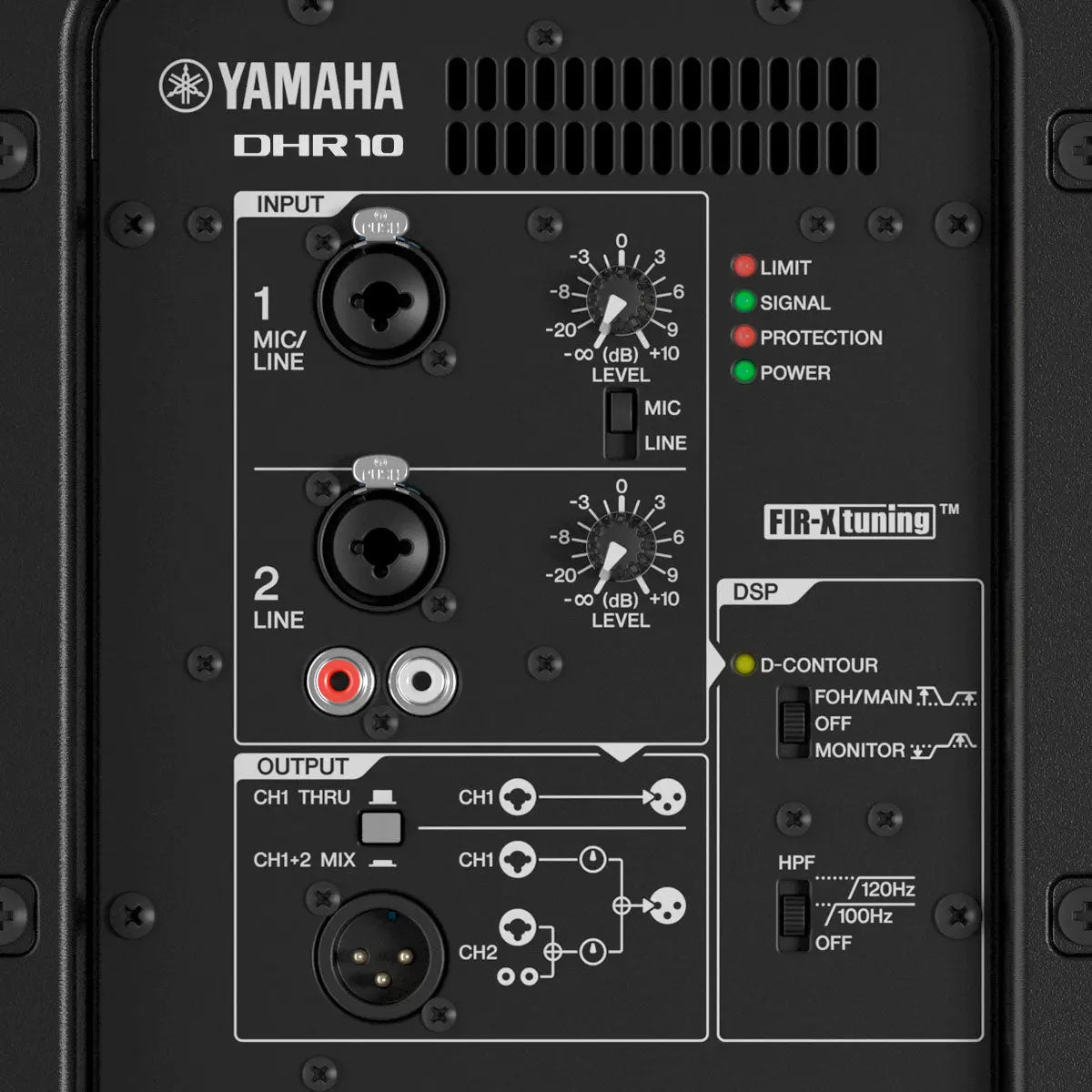

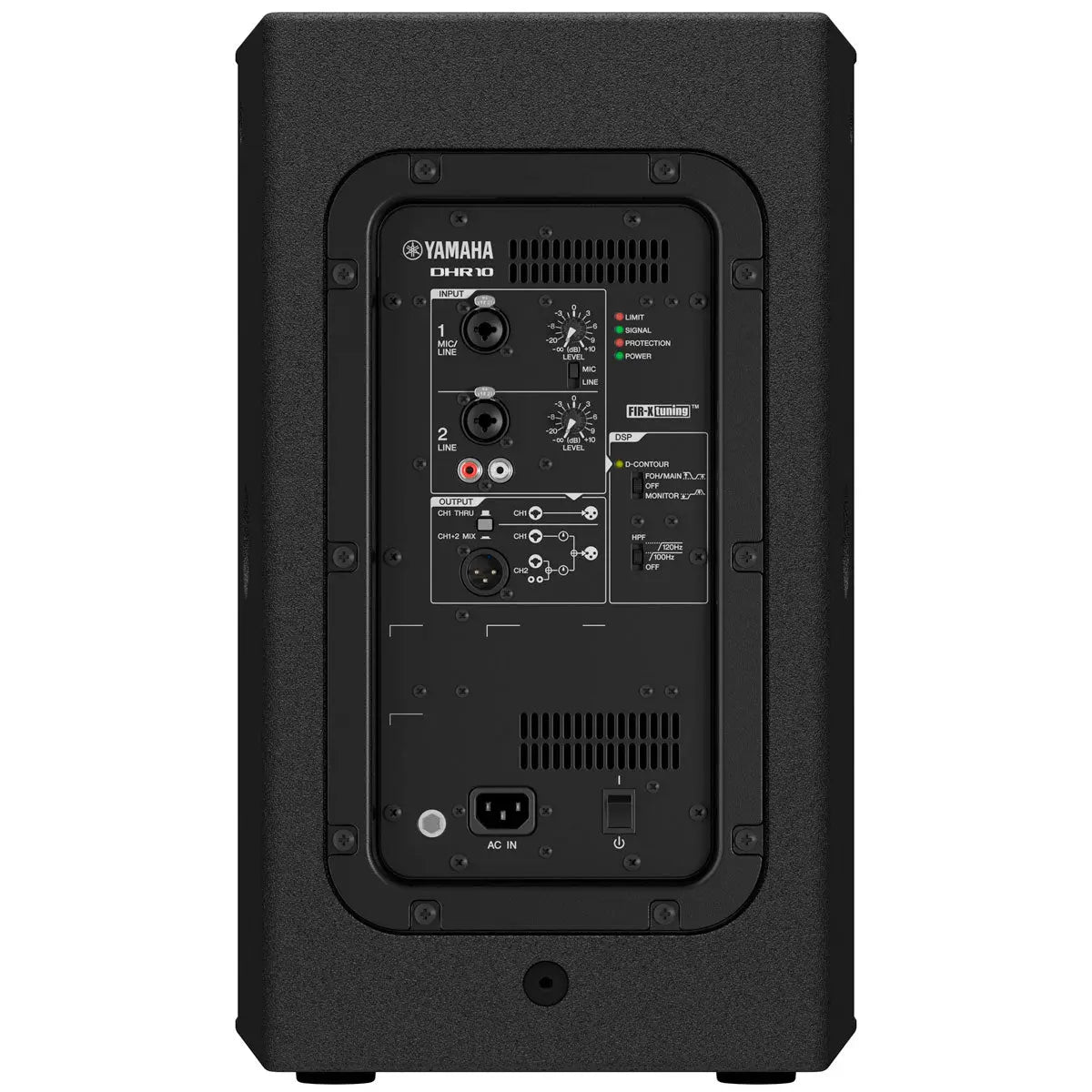

• Easy-to-use Onboard 2-Channel Mixer:
  • CH1: Combo jack (XLR or TRS Phone) for mic or line level input signals.
  • CH2: Combo jack (XLR or TRS Phone) and a pair of RCA pin Jacks for CD players or other stereo line-level sources.
  • Selectable CH1+2 MIX or CH1 THRU output.
• DSP-Equipped: Custom transducers are driven by DSP-equipped Class-D power amplifiers.

Technical Specifications

• Speaker Type: Active 10" PA speaker.
• Amplifier Type: Class-D.
• Amplifier Output (DHR10): 700W.
• Max SPL (DHR10): 127dB.
• Woofer: 10" high power output.
• Compression Driver: 1.4" precision.
• Cabinet Material: Plywood with tough polyurea coating.
• Inputs:
  • CH1: Combo jack (XLR or TRS Phone).
  • CH2: Combo jack (XLR or TRS Phone) and RCA pin Jacks.
• Mixer Output Options: CH1+2 MIX, CH1 THRU.

Suitable For

• Fixed installations.
• Utility applications.
• Anyone looking to step up to professional-quality sound reinforcement.
• A wide variety of sonic environments.

What's in the box

• Yamaha DHR10 Active PA Speaker.
• (Power cable and user manual
