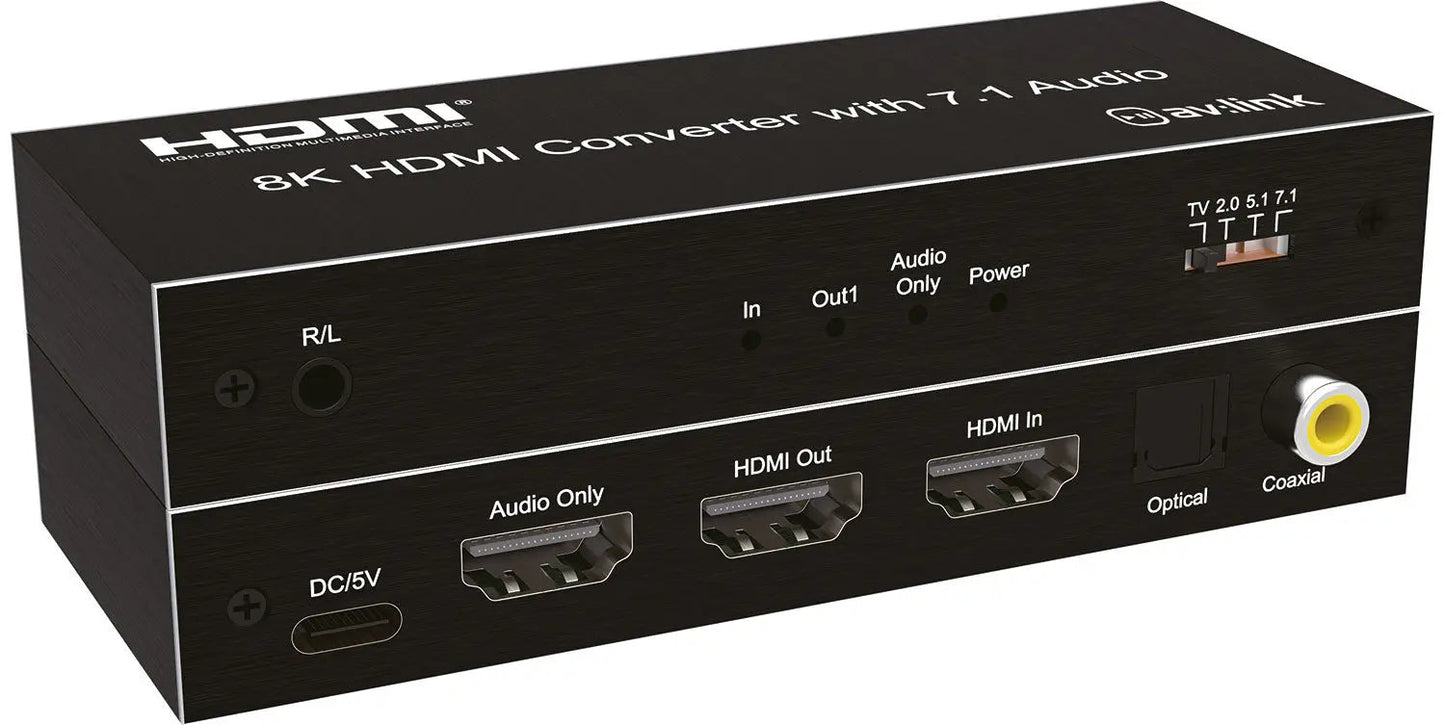

State of the art audio converter that extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single 8K HDMI source device. With support for newer technologies including VRR, LPCM5.1/7.1 and Dolby Atmos this unit is ideal for audio separation from the latest PC's and games consoles.

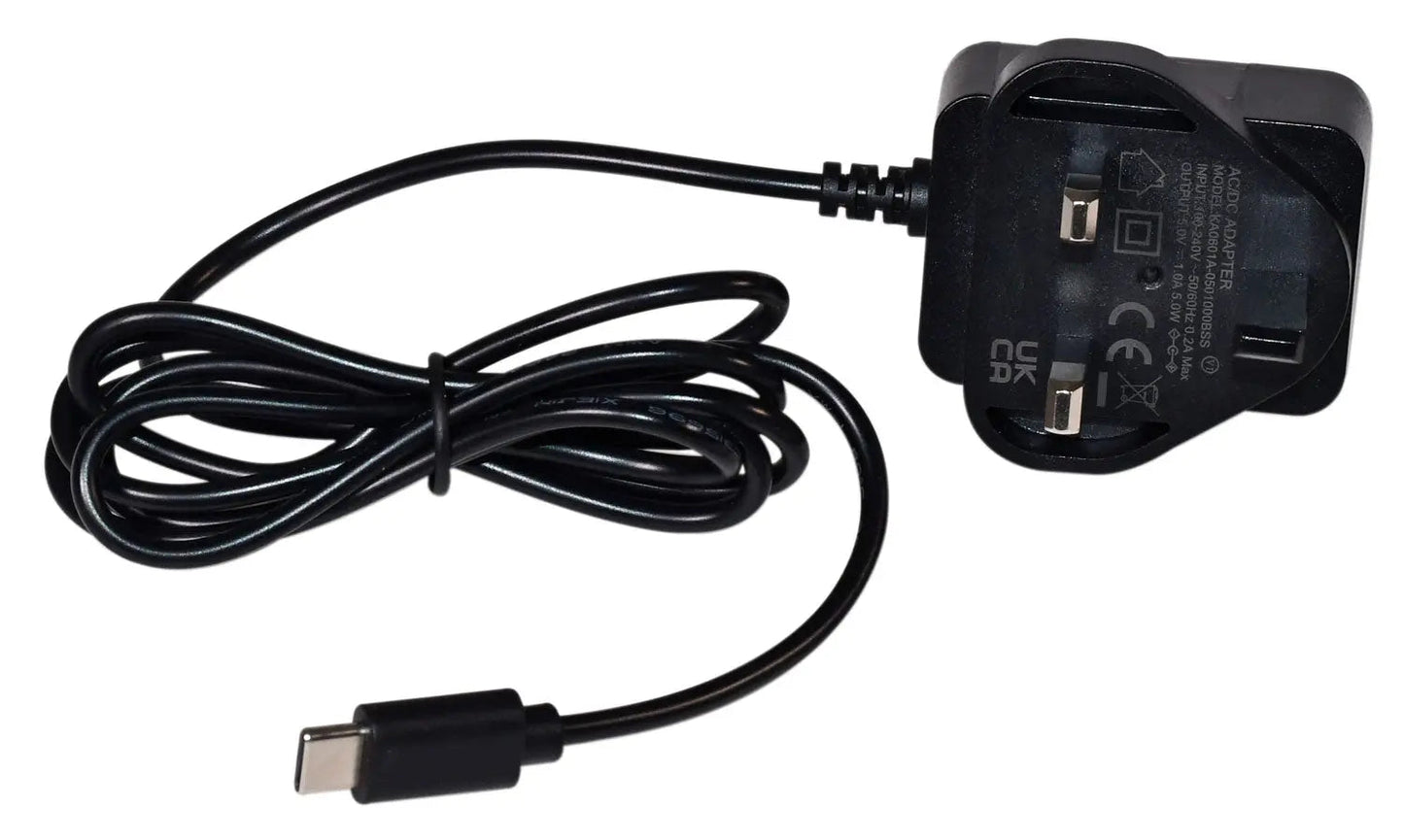

Extracts digital (HDMI, Toslink and Coaxial) and/or Analogue (3.5mm stereo) audio signals from a single HDMI source device Simple plug and play installation and instant synchronisation without delay Supports HDMI input/output resolutions up to 7680×4320 @ 60Hz UK mains adaptor supplied (DC5V/1A) Supports Variable Refresh Rate (VRR) and HDR10 Attractive brushed metal finish

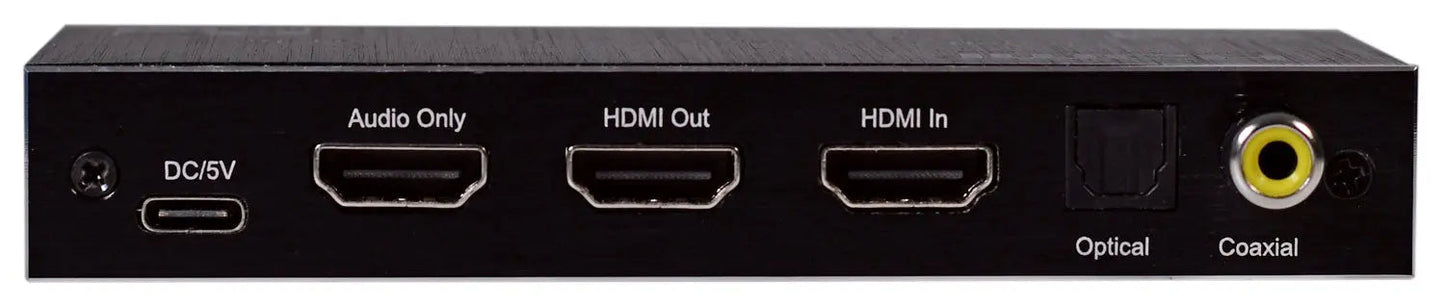

Input connections HDMI (8K), USB-C (DC/5V power input) Output connections HDMI (8K), HDMI (audio only), Optical (Toslink), Coaxial, 3.5mm (Stereo) Video resolution Up to 7680 × 4320 @ 60Hz Max. baud rate 40Gbps Audio output HDMI: PCM2.0, LPCM5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X Audio output SPDIF/COAX: LPCM2.0/5.1, Dolby Digital 2.0/5.1, DTS2.0/5.1 Audio output 3.5mm Jack: Analogue stereo 2.0ch Max. cable length Input: 8K/60Hz≤3m, Output: 8K/60Hz≤5m Power supply Input AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A Dimensions 121 x 57 x 19mm Weight 118g Video format 8/10/12 bit deep colour
