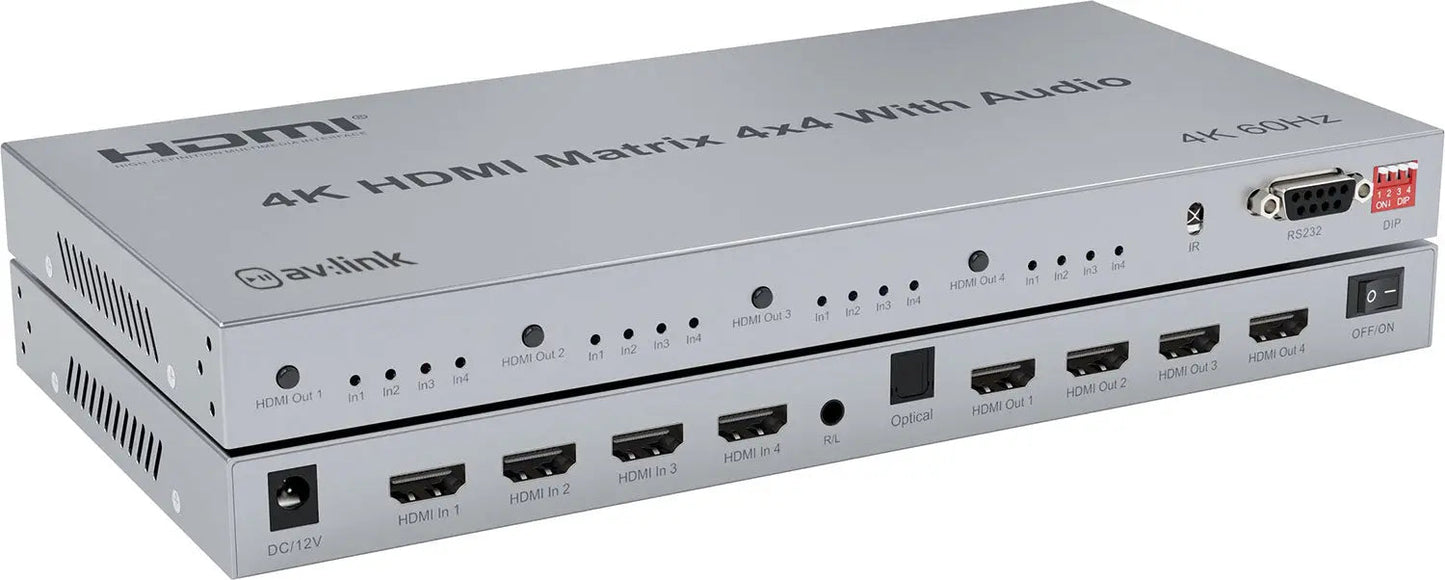

AV:Link 4K HDMI 2.0 Matrix 4x4

A 4K HDMI matrix to switch between 4 source devices and 4 display outputs. Use with HDMI cables of a combined 30m per input/output for 4K@30Hz and FHD resolutions, or a combined 10m per input/output for 4K@ 60Hz. SPDIF and 3.5mm stereo outputs allow the audio signal from HDMI output #1 to be simultaneously channelled through a separate sound system and/or headphones. Robust metal chassis incorporates an EDID switch panel for specific video and sound requirements and an RS232 port for serial data communication with a connected PC or laptop. Compatible with the latest 4K digital TV boxes making it ideal for hospitality and entertainment venues and supplied with IR remote to switch between sources for all outputs.

Supports HDMI resolutions up to 3840 x 2160 @ 60Hz for compatibility with the latest 4K digital TV boxes
Simple setup and operation
Gold plated HDMI connectors for optimum signal transfer
Supports DTS-HD, Dolby TrueHD , LPCM7.1, DTS, Dolby-AC3 and DSD audio formats
Digital SPDIF and analogue 3.5mm jack audio outputs
Smart EDID management for precise video and audio settings
Ideal for entertainment, hospitality and other commercial venues with multiple sources and displays

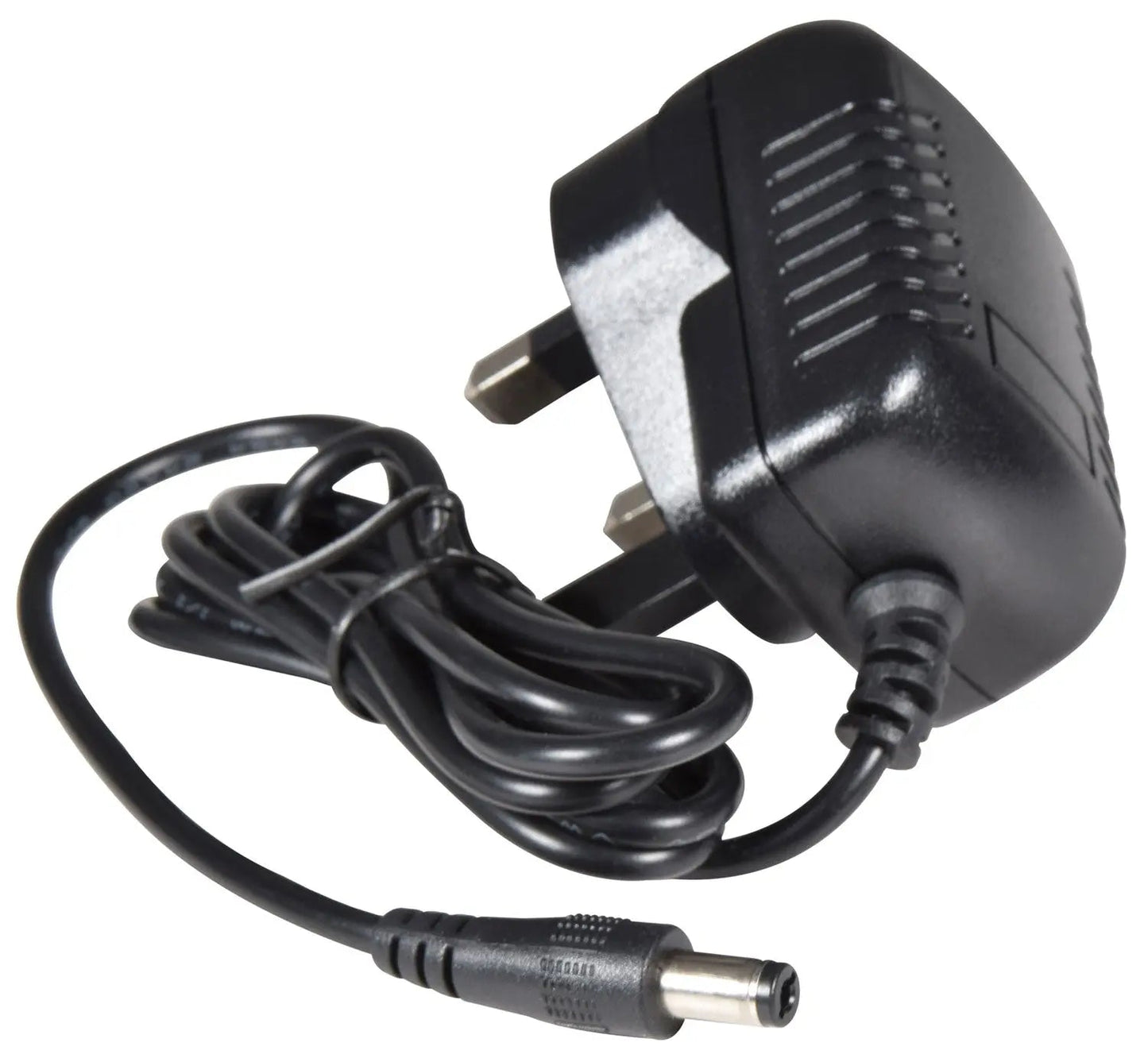

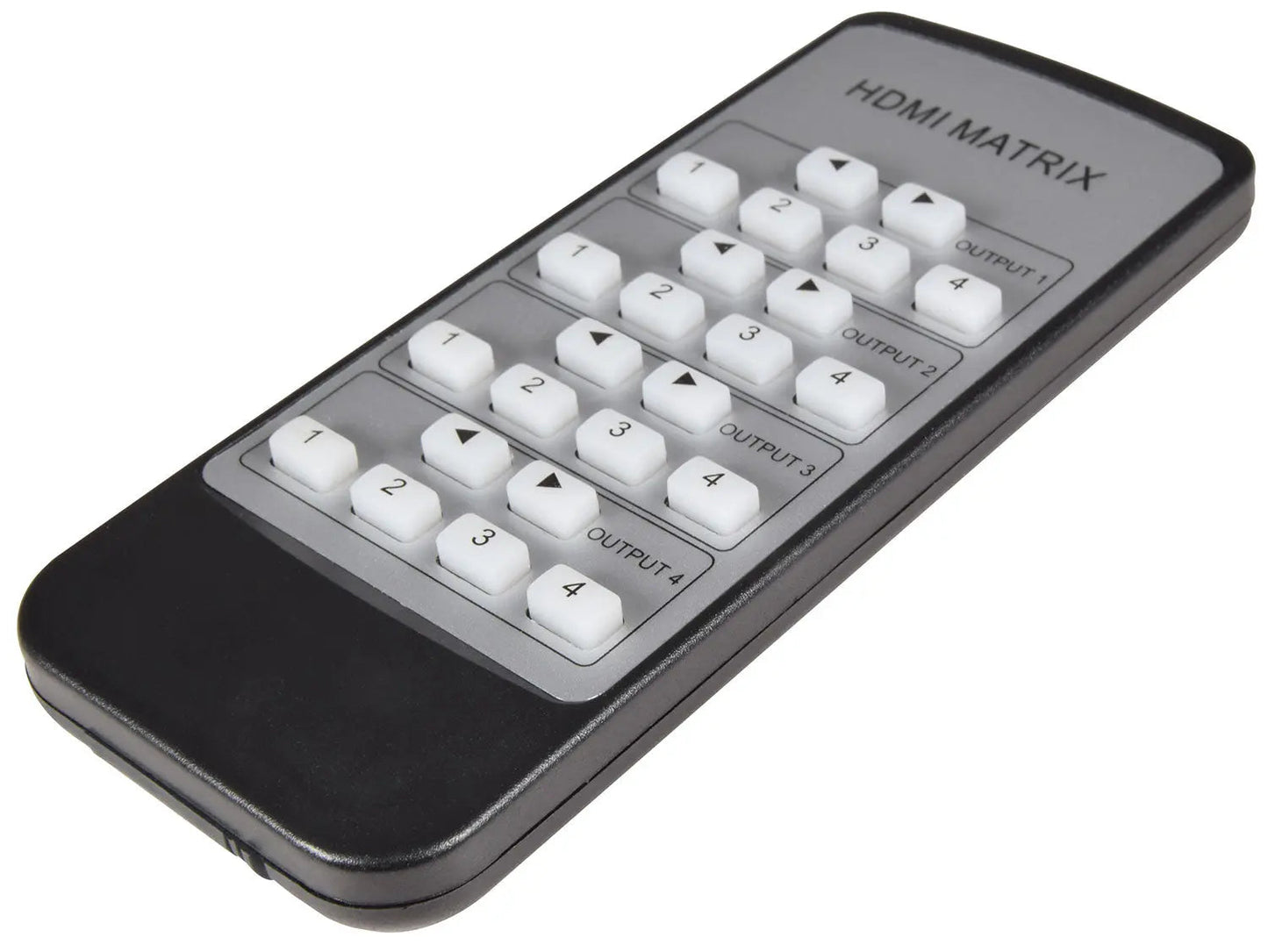

IR remote control and UK power adaptor supplied

Max. resolution 3840 x 2160 @ 60Hz
Display colours 8/10/12bit deep colour
HDCP version 2.2
Audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Input connections 4x HDMI
Output connections 4x HDMI, Optical (Toslink), 3.5mm Stereo
Max. baud rate 18Gbps
Transmission distance 30m max 4K @ 30Hz and FHD or 10m max 4K @ 60Hz
Max. working current 800mA
Operating temperature range -15°C to +55°C
Battery : remote 2x AAA (not supplied)
Power adaptor Input: AC (50Hz, 60Hz) 100-240V, Output: DC12V/1A
Dimensions 276x143x26mm
Weight 720g
