Equinox Animate Smart - 1.6W RGB Laser with Bluetooth Control

The Equinox Animate Smart is a compact and robust metal-housed laser that delivers a crystal-clear array of 51 colorful patterns and animations. It offers versatile control options, including a unique Bluetooth smartphone app control for creating custom text and freehand content.

Key Features

Customizable Content: Create bespoke text or freehand content using the smartphone application connected via Bluetooth.
51 Built-in Patterns & Animations: Produces a crystal-clear array of vibrant visuals.
16 Channel DMX Control: For professional lighting integration.
Multiple Control Modes: Auto, Sound to Light, DMX512, Master/Slave, and Bluetooth for flexible operation.
Compact and Robust Housing: Designed for safe and easy transportation.
High Scanning Speed: 20kpps @ 8° for smooth and dynamic effects.

Technical Specifications

Power supply: 100-250Vac, 50/60Hz (IEC)
Fuse rating: F1A
Power consumption: 22W
Laser power: 1600mW
Scanner: 20kpps @ 8°
Max. scan angle: 30°
Laser class: 3B
DMX channels: 16CH
Modes: Auto/Sound/DMX512/Master-Slave/Bluetooth

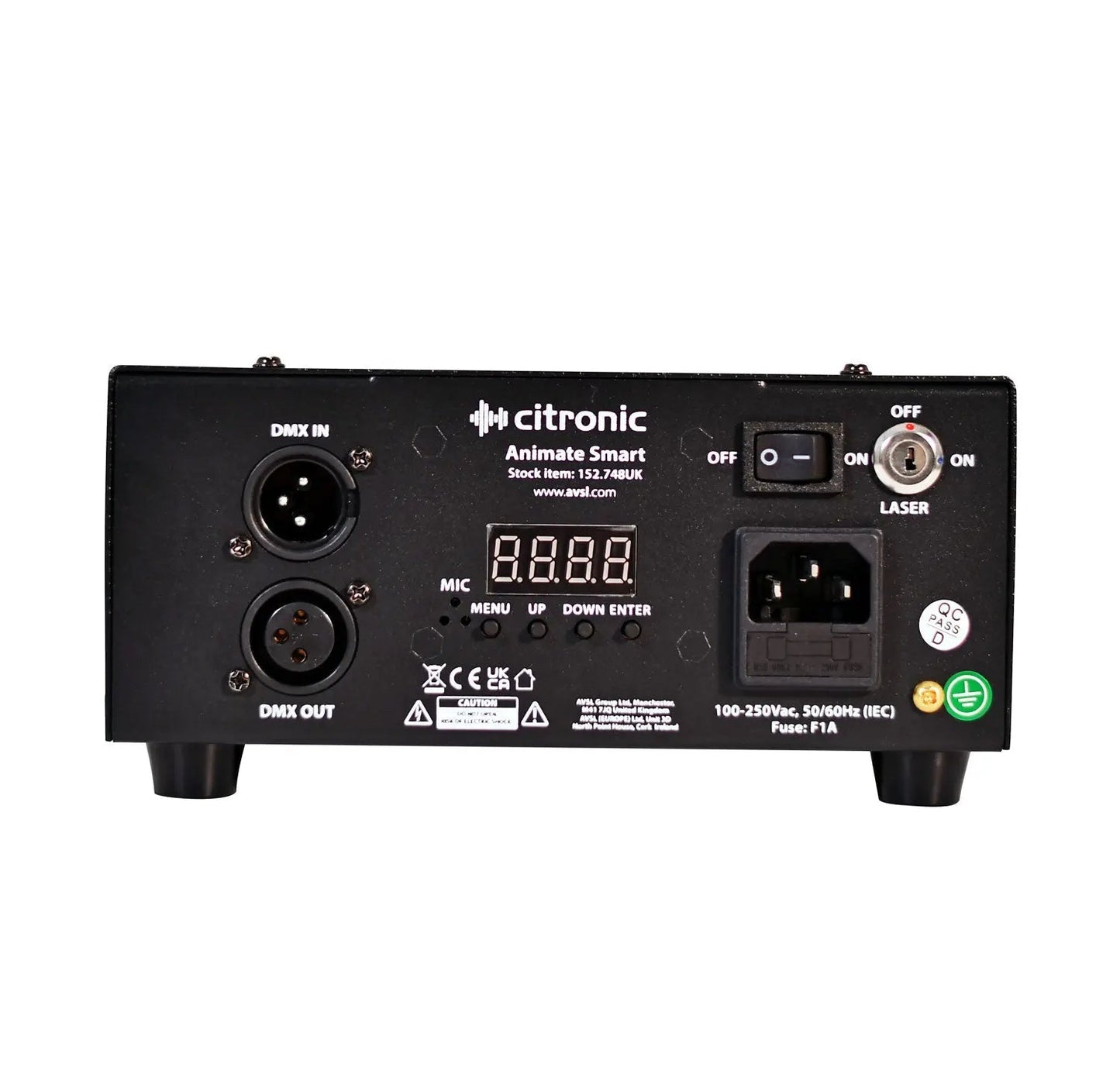

Connections: IEC power, DMX in/out (XLR), Laser key
Dimensions: 188 x 193 x 173mm
Weight: 1.8kg

What's in the box

Equinox Animate Smart Laser
Power Cable
User Manual
