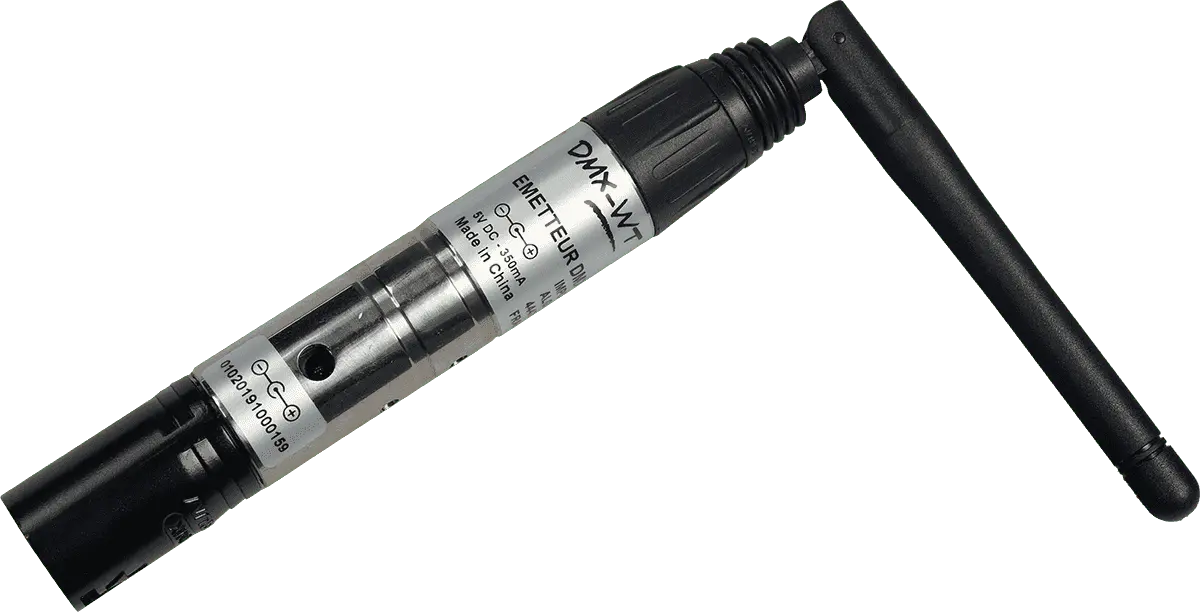

Algam Lighting W-DMX 3pin - Wireless DMX Transmitter/Receiver

The Algam Lighting W-DMX 3pin is a versatile wireless DMX transmitter and receiver system, designed for remote control of lighting equipment that lacks a built-in wireless DMX module. Extremely easy to set up, a single receiver connected to the first device in a chain can control an entire series of machines remotely. This system offers pairing memory and wireless transmission of up to 512 DMX channels and unlimited groups, operating on a 2.4GHz ISM band with an impressive maximum range of 400 meters.

Key Features

  • Wireless DMX Functionality: Acts as both a transmitter and receiver for remote control of lighting equipment.
  • Easy Setup: A single receiver can control a whole series of machines remotely when connected to the first device in the DMX chain.
  • Broad Compatibility: Ideal for lighting equipment without an integrated wireless DMX module.
  • High Channel Capacity: Supports wireless transmission of up to 512 DMX channels per group.
  • Unlimited Groups: Allows for unlimited grouping of devices.
  • Pairing Memory: Features a pairing memory for convenient reconnection.
  • Extended Range: Boasts a maximum range of 400 meters.
  • Robust Wireless Protocol: Operates on a 2.4GHz ISM band with FHSS (Frequency Hopping Spread Spectrum) technology at 1100 hops/sec for stable data transfer.

Technical Specifications

  • Type: Wireless DMX transmitter (also functions as receiver).
  • Frequency: 2.4GHz (ISM band).
  • Extended Spectrum: FHSS, 1100 hops/sec.
  • Data Transfer: DMA - 32-bit ARM.
  • Frequency Band: 2402 - 2480MHz.
  • Maximum Range: 400 meters.
  • DMX Connection: XLR 3-pin male.
  • DMX Channels: 512 / group.
  • Power Supply: 5V DC.
  • Power Consumption: 350mA.
  • Weight: 210g.

Suitable For

  • Lighting engineers.
  • DJs and mobile entertainers.
  • Installations where cable runs are impractical or undesirable.
  • Controlling lighting equipment that lacks built-in wireless DMX.

What's in the box

  • Algam Lighting W-DMX 3pin Unit (Transmitter/Receiver).
  • 5V DC power supply.
