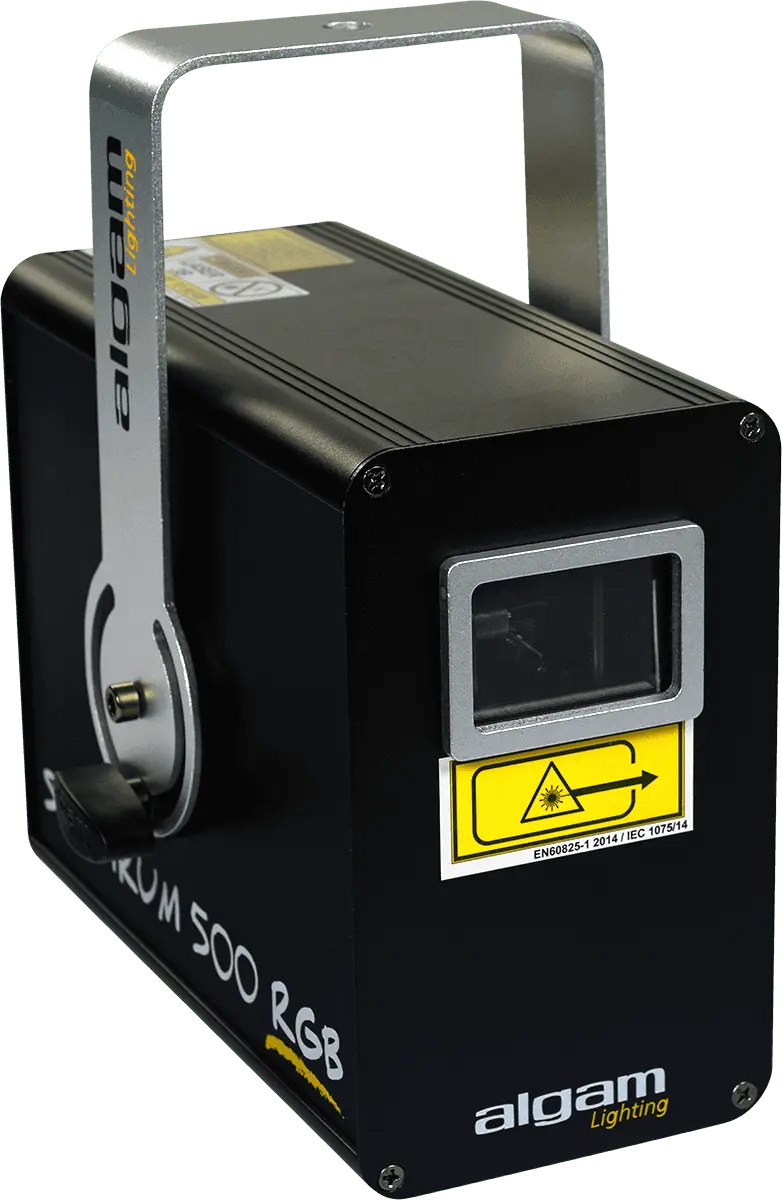

Algam Spectrum 500 RGB

Spectrum 500 RGB - Full Colour Laser with 20kpps Scanner

The Spectrum 500 RGB is a powerful full-color laser designed to create striking, beautiful multi-colored layers and dynamic effects in any medium-sized space. Thanks to its three robust lasers—red, green, and blue—this unit offers a wide range of vibrant colors. Ideal for club installations, mobile DJs, and disco setups, the Spectrum 500 RGB features wide-angle scanning beams and high-performance scanner motors that ensure optimum fluidity and dynamic effects. With no less than 2,000 internal programs for automatic or music-controlled operation, and versatile DMX and IDLA compatibility, this laser is easy to use yet capable of spectacular and customizable effects.

Key Features

• Vibrant RGB Full Colour Lasers: Equipped with three separate laser sources to produce a wide range of colors:

  • 1 x 100mW/638nm red laser

  • 1 x 80mW/520nm green laser

  • 1 x 290mW/450nm blue laser

• Dynamic Effects with High-Speed Scanner: Features a powerful 20kpps scanner motor that ensures optimum fluidity and dynamics for its effects. The wide-angle scanning beams create beautiful multi-colored layers that can fill a medium-sized space.

• Extensive Internal Programs: Offers a vast library of 2,000 internal programs, including popular tunnel effects, waves, geometric patterns, and graphics. These can be run in either automatic or music-controlled mode for effortless operation.

• Versatile Control Options:

  • DMX Control: Fully controllable via DMX with a choice of 6 or 34 channels, allowing for precise control of laser effects and their rotation speed for integration into professional lighting setups.

  • IDLA Compatibility: The laser is IDLA compatible, enabling you to customize patterns and effects with external software for even more spectacular and personalized light shows.

• Robust Safety Features: As a Class 3B laser, it includes essential safety features such as a safety key and interlock connector, ensuring compliance with the European standard EN60825-1:2014.

• Durable & Efficient Design: The housing is made from durable aluminum and features a fan-based cooling system to ensure reliable, long-term operation.

• Easy to Mount & Transport: Supplied with a yoke mounting bracket for easy installation on trusses or ceilings, and with a light weight of just 2.25kg, it is highly portable for mobile use.

Technical Specifications

• Light Sources: 1 x 100mW red laser, 1 x 80mW green laser, 1 x 290mW blue laser

• Laser Class: 3B

• Safety: Safety key, interlock connector (Complies with EN60825-1:2014)

• Mirror Motor: 20kpps scanner

• Number of Internal Programmes: 2000

• Control Modes: Auto, Music-controlled, DMX

• DMX Channels: 6 or 34

• DMX Input/Output: XLR 3-pin

• IDLA Interface: Input/output

• Frame: Aluminium

• Cooling System: Fan

• Supply Voltage: 100-240V, 50/60Hz

• Power Consumption: 50W

• Weight: 2.25kg

• Dimensions (W x D x H): 260 x 260 x 150mm

• Protection Class: IP20 (for indoor use)

What's in the box

• Spectrum 500 RGB Laser

• Power cable and Velcro cable tie

• Yoke mounting bracket

• Safety sling

• Quick start guide (typically included)

Suitable For

• Mobile DJs and discos

• Club and bar installations

• Event lighting and parties

• Users seeking a versatile and easy-to-use full-color laser

• Performers who need DMX or IDLA control for custom effects
