Algam Lighting MB80

Algam Lighting MB80 - 80W White LED Beam Moving Head

The Algam Lighting MB80 is a highly powerful 80W white LED beam projector, delivering bluffing efficiency for its compact size. It features an 8-gobo wheel, an 8-colour palette, and a double rotating prism (6 or 12 facets) to project attractive light beams and patterns. Developed by a team of enthusiasts, the MB80's quiet motorization ensures smooth and dynamic panning up to 540° and tilting up to 230°, making it compatible with a wide range of fixed or mobile applications.

Key Features

• Powerful 80W White LED: Projects a formidable beam for its class.
• Versatile Gobo & Color Wheels: Features a wheel of 8 gobos and an 8-colour palette for diverse patterns and hues.
• Double Rotating Prism: Includes both a 6-facet and a 12-facet rotating prism for multi-beam effects.
• Dynamic Movement: Quiet motorization allows smooth PAN up to 540° and TILT up to 230° with striking dynamism.
• Multiple Operating Modes: Operates in Auto, Music-controlled, Master/Slave, and DMX mode.
• Flexible DMX Control: DMX controllable through 11 or 13 channels for extended possibilities.
• User-Friendly Control Panel: Configurable via the integrated digital display with 4 control buttons.
• Compact & Lightweight: Weighs only 3.0kg, making it easy to transport and install.
• Safe Installation: Features a removable base plate system for safe head-down installations.
• Diverse Effects: Includes color, 1/2 color, and strobe effects.
• Linear Dimmer: Offers 0-100% dimming with a linear curve.

Technical Specifications

• Light Sources: 1 x 80W white LED spotlight (colour effects, rainbow, strobe).
• Movements: PAN up to 540° / TILT up to 230°.
• Gobo Wheel: 12 gobos.
• Colour Wheel: 8 colors.
• Prism: Double 6-facet rotating prism + 12-facet rotating prism.
• Dimmer: 0-100%, linear curve.
• Modes: Auto, Music-controlled, Master/Slave, and DMX.
• Number of DMX Channels: 11 or 13.
• DMX Input/Output: XLR 3-pin.
• Display: Digital display with 4 control buttons.
• Frame Material: Plastic.
• Supply Voltage: 100-240V, 50/60Hz.
• Power Consumption: 120W.
• Weight: 3.0kg.
• Dimensions: 195 x 170 x 280mm.
• Protection Class: IP20 (indoor use).

Suitable For

• DJs.
• Fixed installations.
• Mobile applications.
• Anyone needing powerful beam effects with versatile patterns and colors.

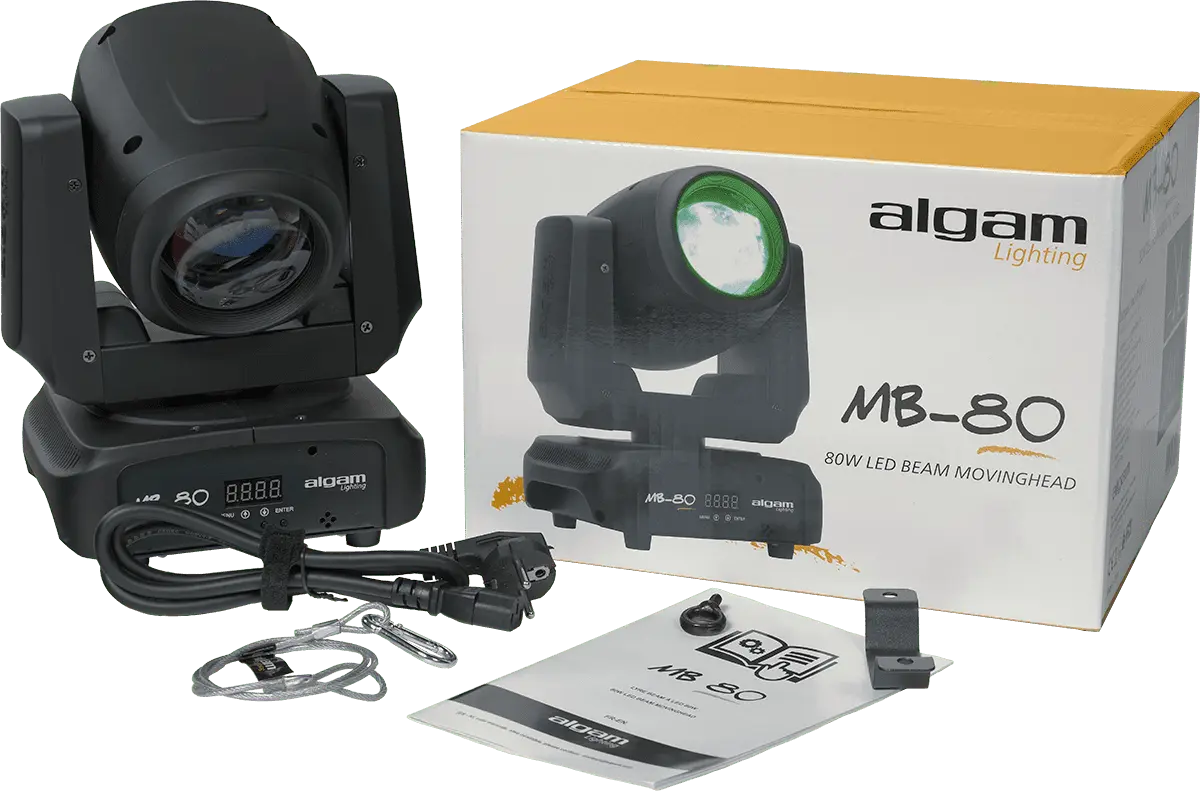

What's in the box

• Algam Lighting MB80 Beam Moving Head.
• Power cable.
• Velcro cable tie.
• Yoke mounting bracket.
• Safety sling.
