Algam Lighting MW19X15Z

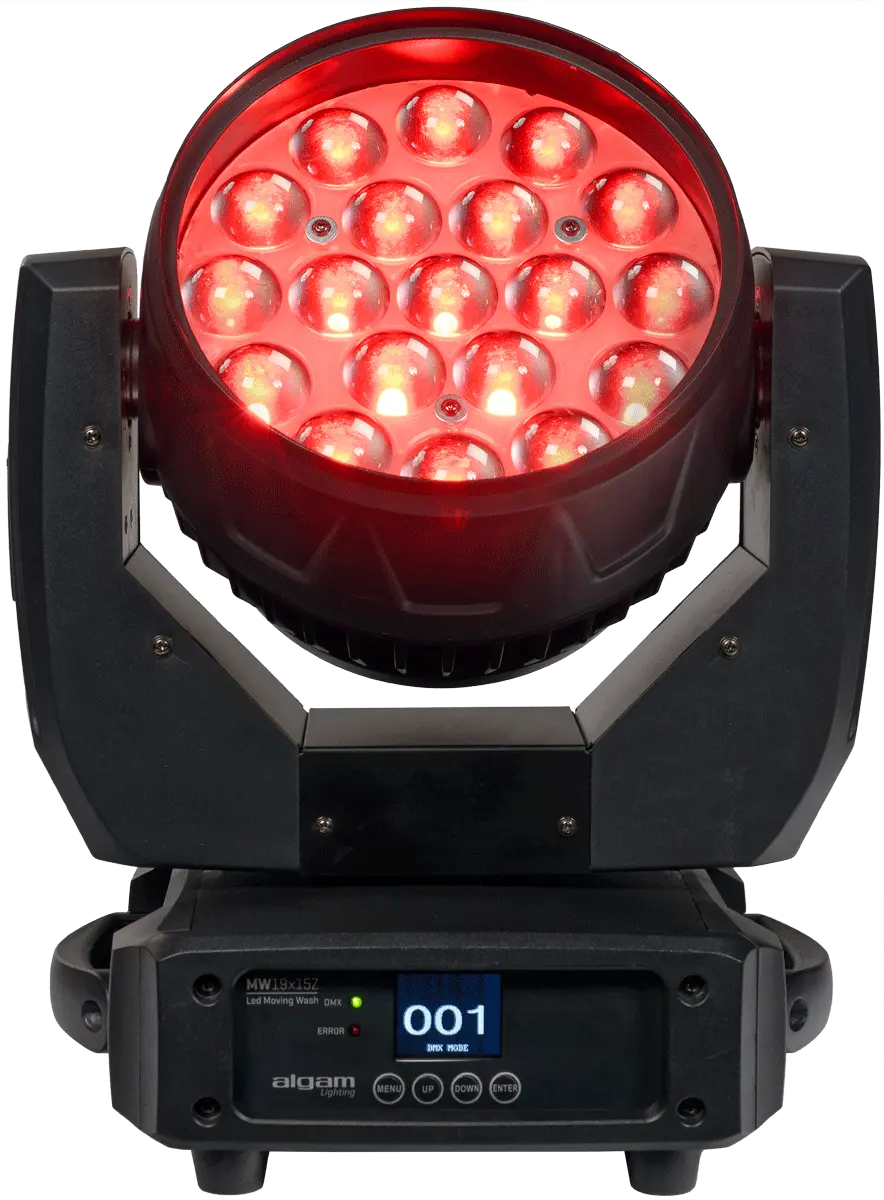

Algam Lighting MW19X15Z - RGBW LED Wash Moving Head with Zoom

The Algam Lighting MW19X15Z is a powerful wash moving head featuring 19 x 15W RGBW LEDs, delivering striking color effects within a neatly designed frame. This projector boasts a motorized zoom covering angles from 6° to 50°, making it compatible with a wide range of professional applications. Its quiet motorization ensures fluid and responsive panning up to 540° and tilting up to 270°. Developed for lighting professionals, the MW19X15Z offers DMX control, integrated configuration, and various operating modes, with Powercon input/output for easy power chaining and OMEGA sockets for safe installation.

Key Features

• Powerful RGBW LED Source: Equipped with 19 x 15W RGBW LEDs for rich and striking color effects.
• Motorized Zoom: Covers a versatile beam angle from 6° to 50°.
• Dynamic & Fluid Movement: Quiet motorization allows PAN up to 540° and TILT up to 270° with remarkable fluidity and responsiveness.
• Flexible Control Options: Controllable by DMX (15 or 23 channels) or configurable via the integrated LCD control panel with 5 buttons.
• Multiple Operating Modes: Operates in Auto, Music-controlled, Random, and DMX modes.
• Professional Power Connectivity: Power supply with Powercon input and output for chaining devices.
• Secure Installation: Includes 2 OMEGA sockets with quarter turn locking for safe installations.
• Long LED Lifespan: Average life span of 50,000 hours.
• Linear Dimmer: 0-100% linear curve dimmer.

Technical Specifications

• Light Sources: 19 x 15W RGBW LEDs.
• Average Life Span: 50,000 hours.
• Dimmer: 0-100%, linear curve.
• Beam Angle: 6° to 50°.
• Movements: PAN up to 540° / TILT up to 270°.
• Modes: Auto, Music-controlled, Random and DMX.
• Number of DMX Channels: 15 or 23.
• DMX Input/Output: XLR 3-pin.
• Display: LCD screen with 5 control buttons.
• Frame Material: Plastic.
• Installation and Fixings: 2 OMEGA sockets with quarter turn locking.
• Power Connector: Locking socket (input/output).
• Supply Voltage: 100-240V, 50/60Hz.
• Power Consumption: 300W.
• Weight: 8.5kg.
• Dimensions: 325 x 188 x 395mm.
• Protection Class: IP20 (indoor use).

Suitable For

• Lighting professionals.
• Clubs.
• Bars.
• Concerts.
• Events requiring powerful and versatile wash effects with zoom.

What's in the box

• Algam Lighting MW19X15Z Moving Head.
• Power cable.
• Yoke mounting bracket.
• Safety sling.
