Algam Lighting MS100

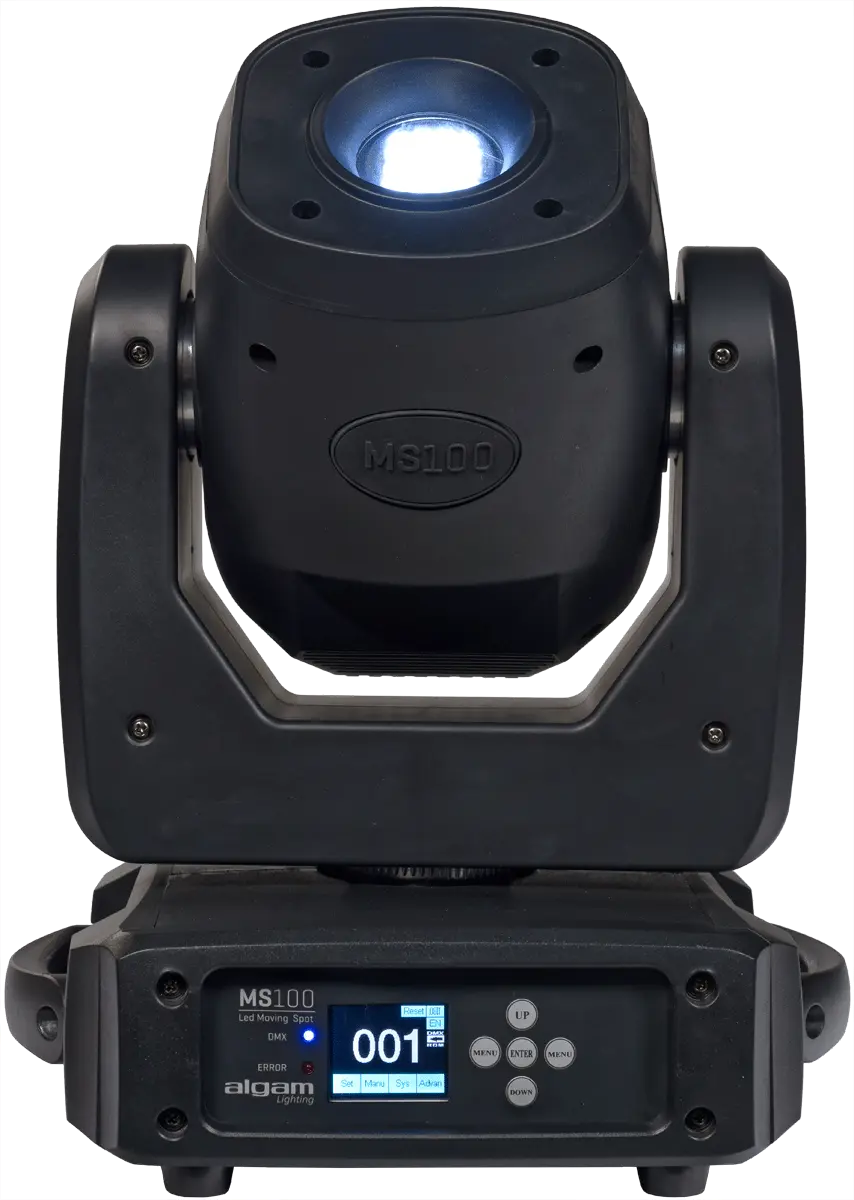

Algam Lighting MS100 - 100W White LED Spot Moving Head

The Algam Lighting MS100 is a professional spot moving head, featuring a powerful 100W white LED light source to create a wide range of impressive effects within a well-designed frame. This lightweight yet resource-packed device (5.9kg) is developed for lighting professionals, offering a motorized focus, a 6-facet variable speed prism, and two gobo wheels (one fixed, one rotating). Its quiet motorization provides tremendous flexibility with 540° pan and 270° tilt, making it suitable for a wide range of fixed and mobile applications.

Key Features

• Powerful White LED Light Source: Features a 1 x 100W white LED spotlight for striking effects.
• Dual Gobo Wheels: Includes one fixed gobo wheel (7 gobos + open, with wheel rotation and SHAKE effect) and one rotating gobo wheel (6 gobos + open, with wheel rotation, gobo rotation, and SHAKE effect).
• Colour Wheel: Offers a 7-colour wheel + white, with half colours and rainbow effect for a wide range of hues.
• Motorized Focus: Allows for precise beam adjustment.
• 6-Facet Variable Speed Prism: Creates dynamic multi-beam effects.
• Dynamic Movement: Quiet motorization enables flexible and fast pan up to 540° and tilt up to 270°.
• Multiple Operating Modes: Can be controlled by DMX (14 channels) or configured via the integrated control panel; also operates in automatic, music-controlled, and Random modes.
• Professional Power Connectivity: Features Powercon input and output for chaining devices.
• Secure Installation: Equipped with 1 OMEGA socket with quarter turn locking for safe installations.
• Long LED Lifespan: Average life span of 50,000 hours.
• Linear Dimmer: Offers 0-100% linear curve dimming.

Technical Specifications

• Light Sources: 1 x 100W white LED spotlight.
• Average Life Span: 50,000 hours.
• Colour Temperature: 7000 K - 7500 K.
• Dimmer: 0-100%, linear curve.
• Beam Angle: 15°.
• Movements: PAN up to 540° / TILT up to 270°.
• Focus: Motorised.
• Fixed Gobo Wheel: 7 gobos + open, wheel rotation and SHAKE effect.
• Rotating Gobo Wheel: 6 gobos + open, wheel rotation, gobo rotation and SHAKE effect.
• Colour Wheel: 7-colour wheel + white, half colours and rainbow effect.
• Prism: 6 facets with variable rotation speed.
• Modes: Auto, Music-controlled, Random and DMX.
• Number of DMX Channels: 14.
• DMX Input/Output: XLR 3-pin.
• Display: LCD screen with 5 control buttons.
• Frame Material: Plastic.
• Installation and Fixings: 1 OMEGA socket with quarter turn locking.
• Power Connector: Locking socket (input/output).
• Supply Voltage: 100-240V, 50/60Hz.
• Power Consumption: 150W.
• Weight: 5.9kg.
• Dimensions: 280 x 215 x 370mm.
• Protection Class: IP20 (indoor use).

Suitable For

• Lighting professionals.
• Fixed installations.
• Mobile applications.
• Events requiring versatile and impressive spot effects.

What's in the box

• Algam Lighting MS100 Moving Head.
• Power cable.
• Velcro cable tie.
• Yoke mounting bracket.
• Safety sling.
