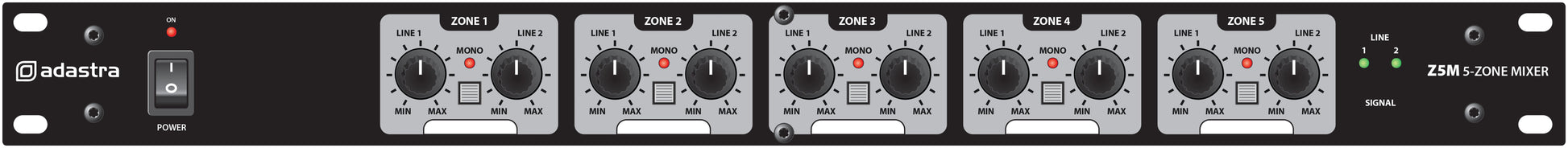

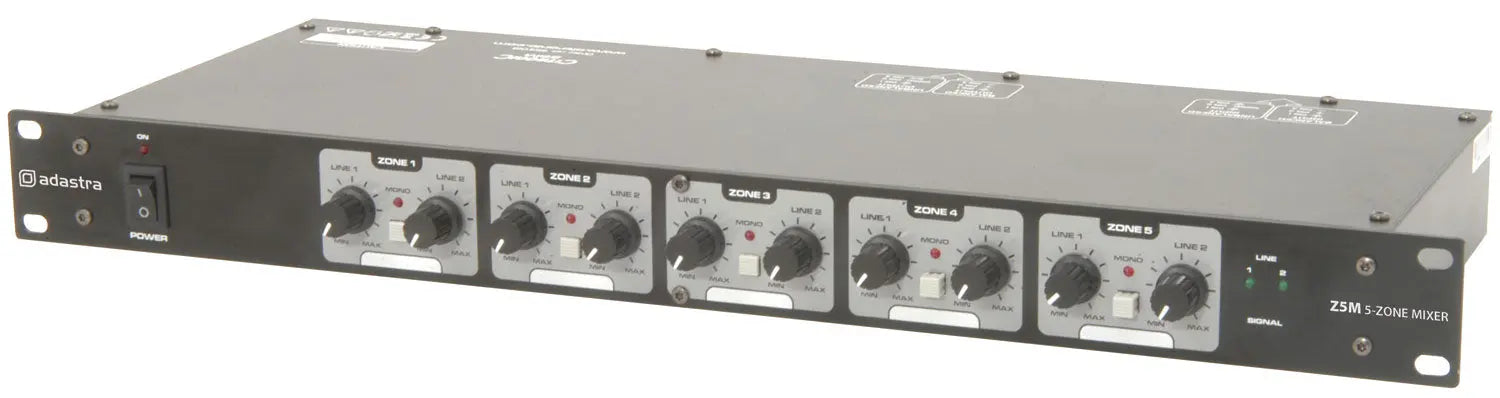

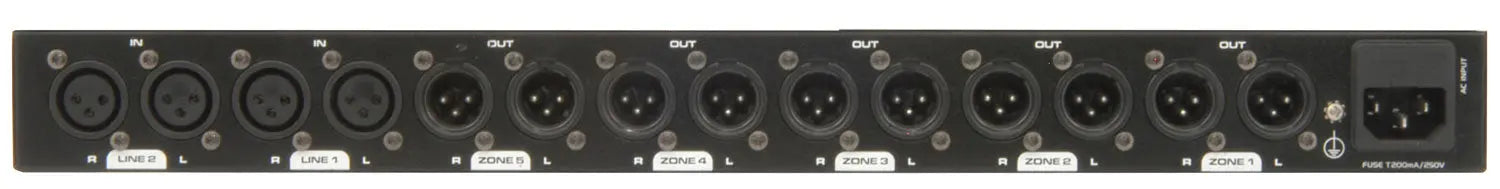

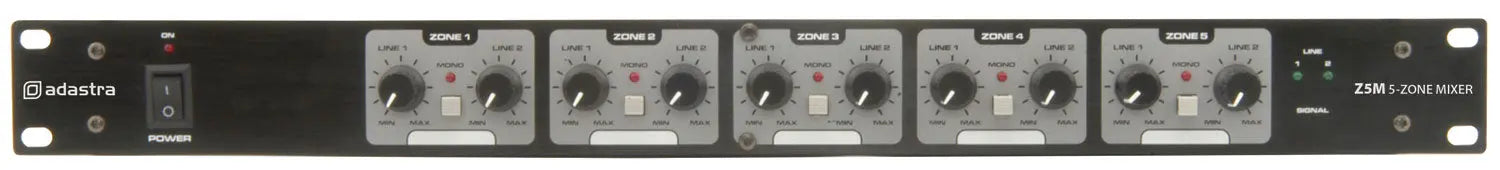

2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.
Fully balanced XLR connections 2 inputs to 5 zones Mono selectable for each zone
Power supply 115/230Vac 50/60Hz (IEC) Inputs Line 1 L+R, Line 2 L+R, balanced XLRF Outputs Zone 1 to 5 L+R, balanced XLRM Input impedance 40k Ohms Output impedance 220 Ohms Frequency response 20Hz - 25kHz, +0/-1dB Signal to noise ratio >100dB THD <0.005% Dimensions 483 x 175 x 44mm Weight 2.2kg
