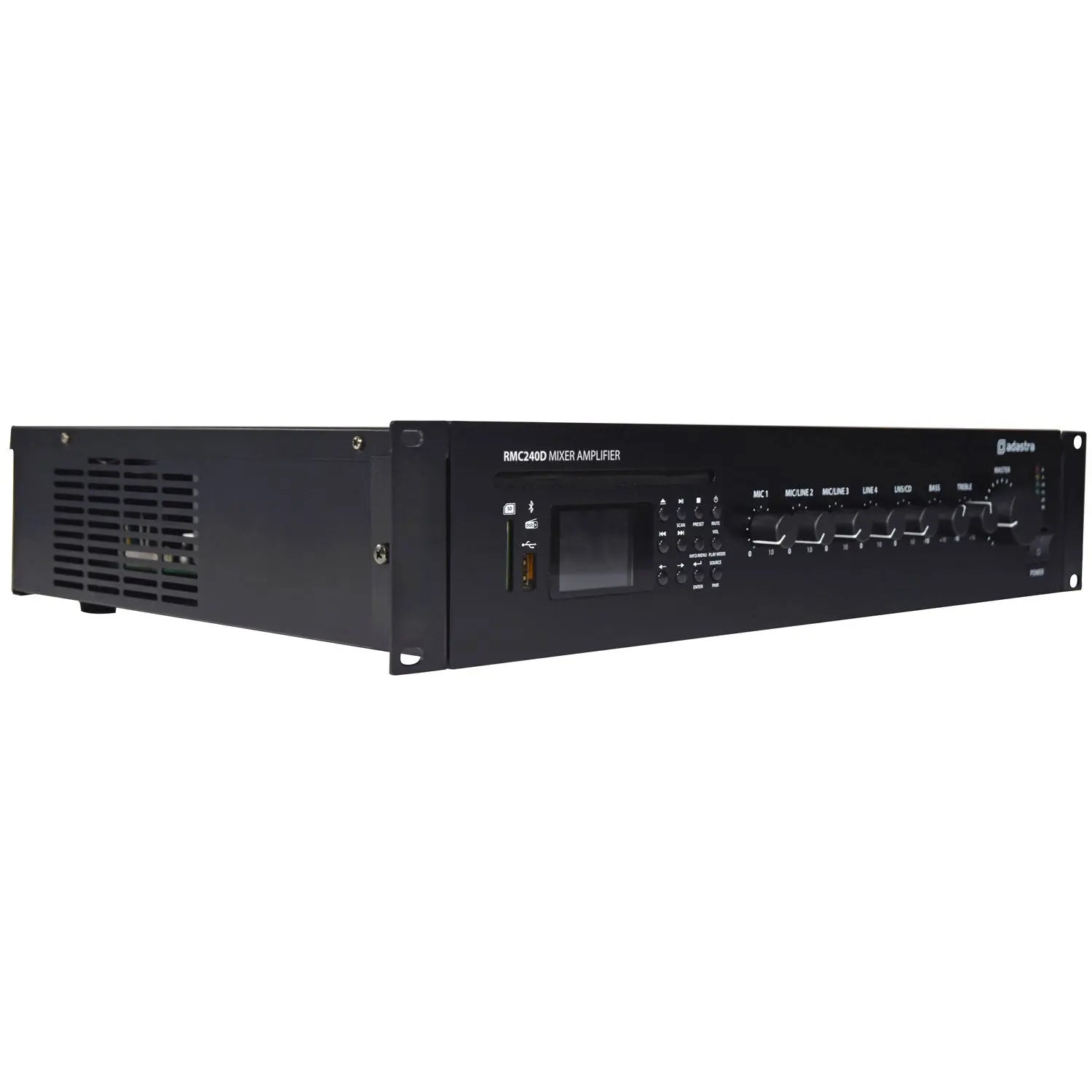

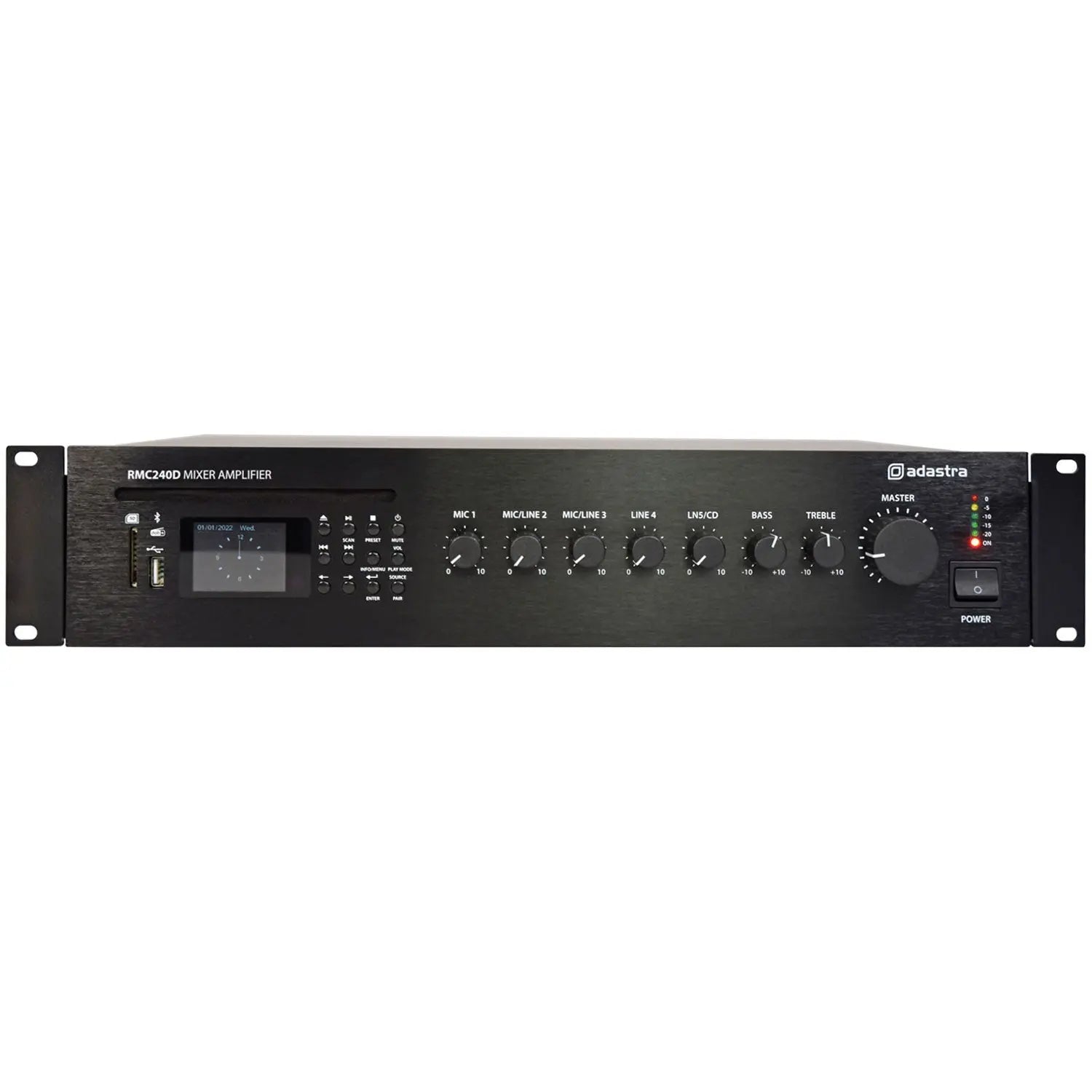

Adastra RMC240D Mixer-amp 240W + CD/BT/USB/SD/DAB/FM

100V line mixer-amplifiers with built-in multi-format media player. 5 input channels include a balanced XLR microphone input with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs. A powerful class AB amplifier section is paired with a digital switch-mode power supply and 100V transformer for reliable power delivery from an energy efficient power section. A built-in CD player provides audio playback alongside a USB/SD media player with an integral DAB+ and FM radio tuner. A Bluetooth® receiver enables pairing to a smartphone for wireless playback of stored tracks. Bass & Treble EQ and Master volume control the overall output, which can power either low impedance or 100V line speakers. A comprehensive solution for commercial sound installations.

5 input channels
DAB+ and FM radio tuner

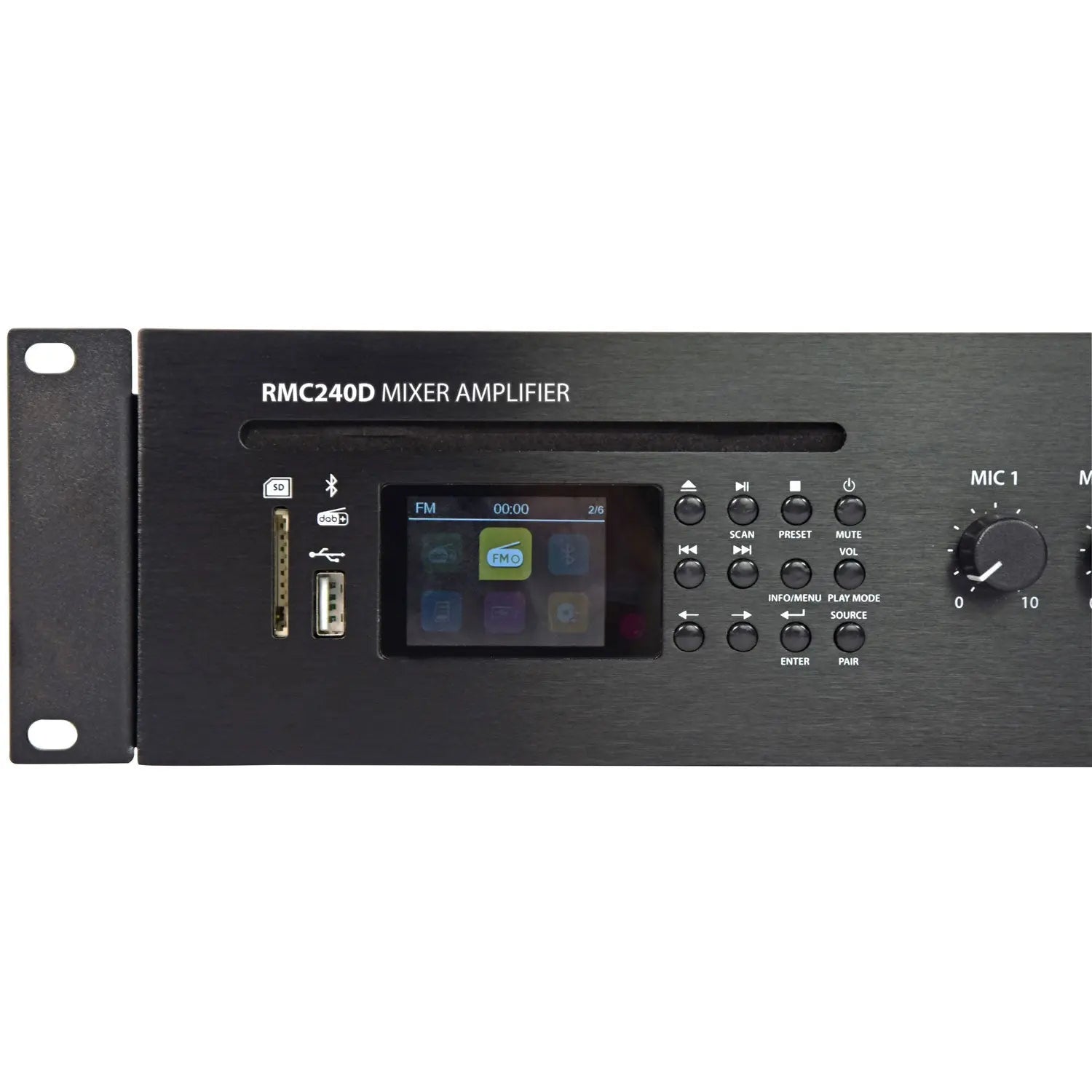

Slot feed CD player
Bluetooth connectivity
USB/SD mp3 player
100V or 4-16 Ohms output
Supplied with 19" rack-mount ears
Optional remote control available SPR000708

Power supply 170-264Vac, 50Hz (IEC)
DC power 24Vdc (screw terminals)
Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced) -53dBV
Input impedance : mic 1 5k Ohms
Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
Input impedance : inputs 2-5 1k Ohms
Line output RCA

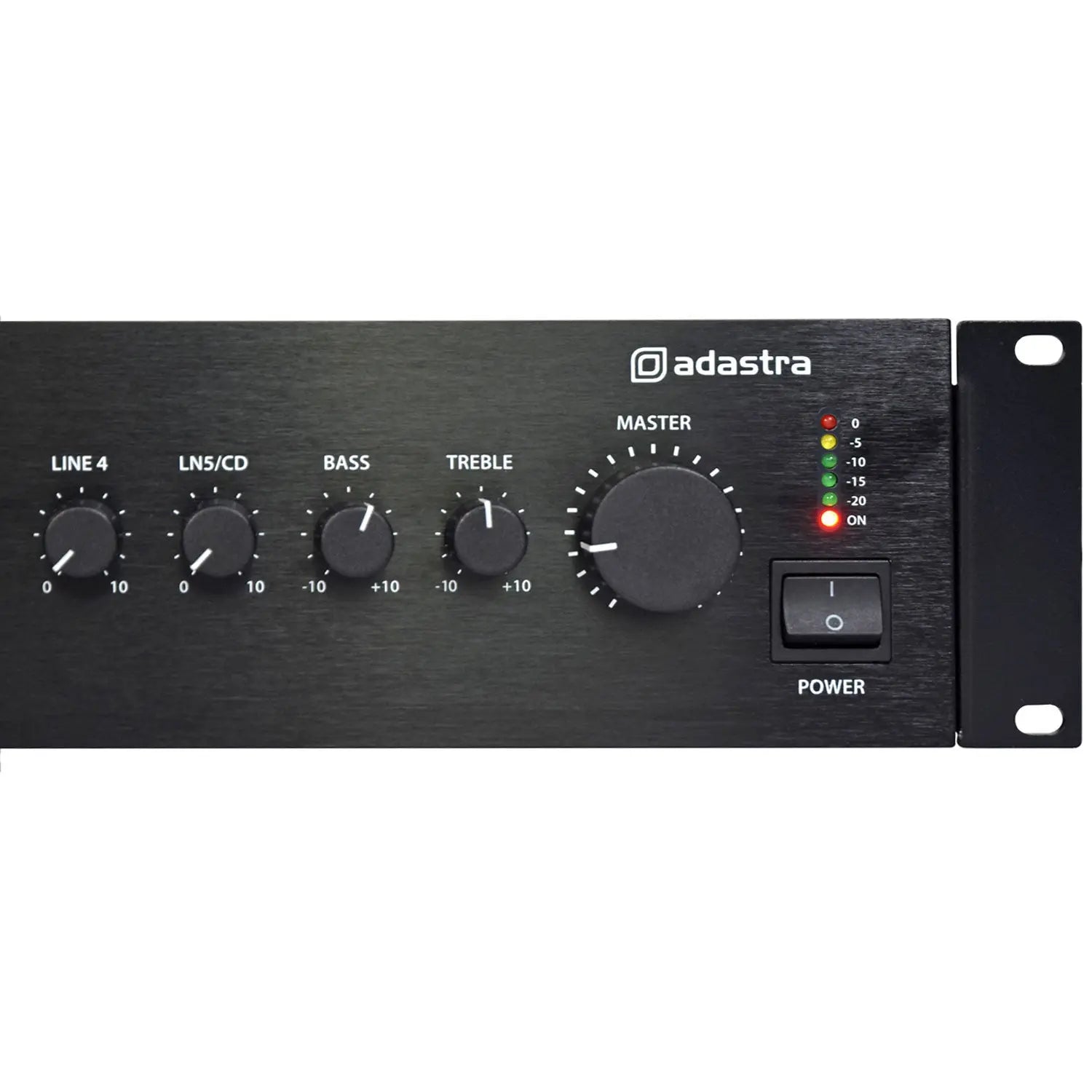

Controls Mic1, mic/line2+3, line4+5 (USB), bass, treble, master volume

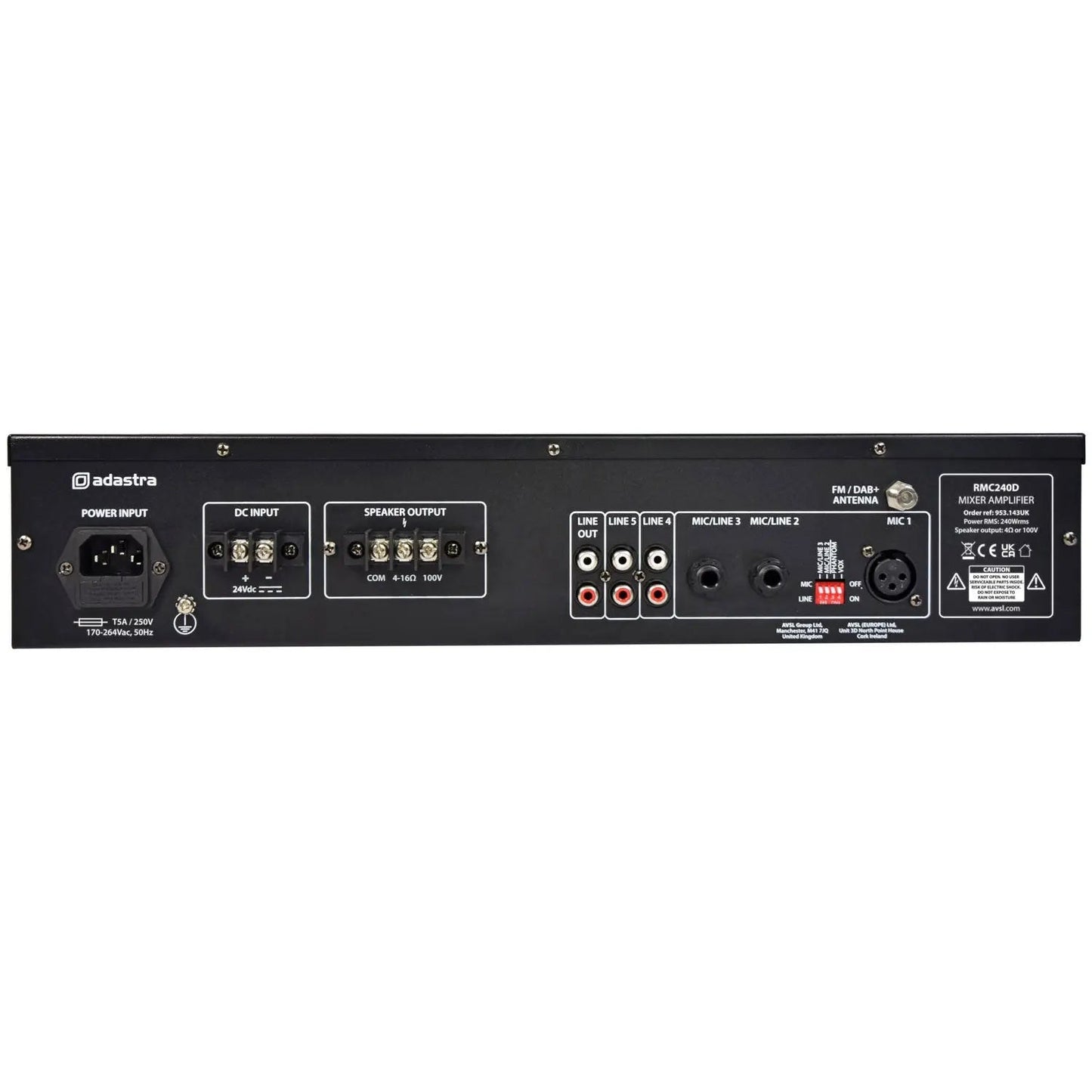

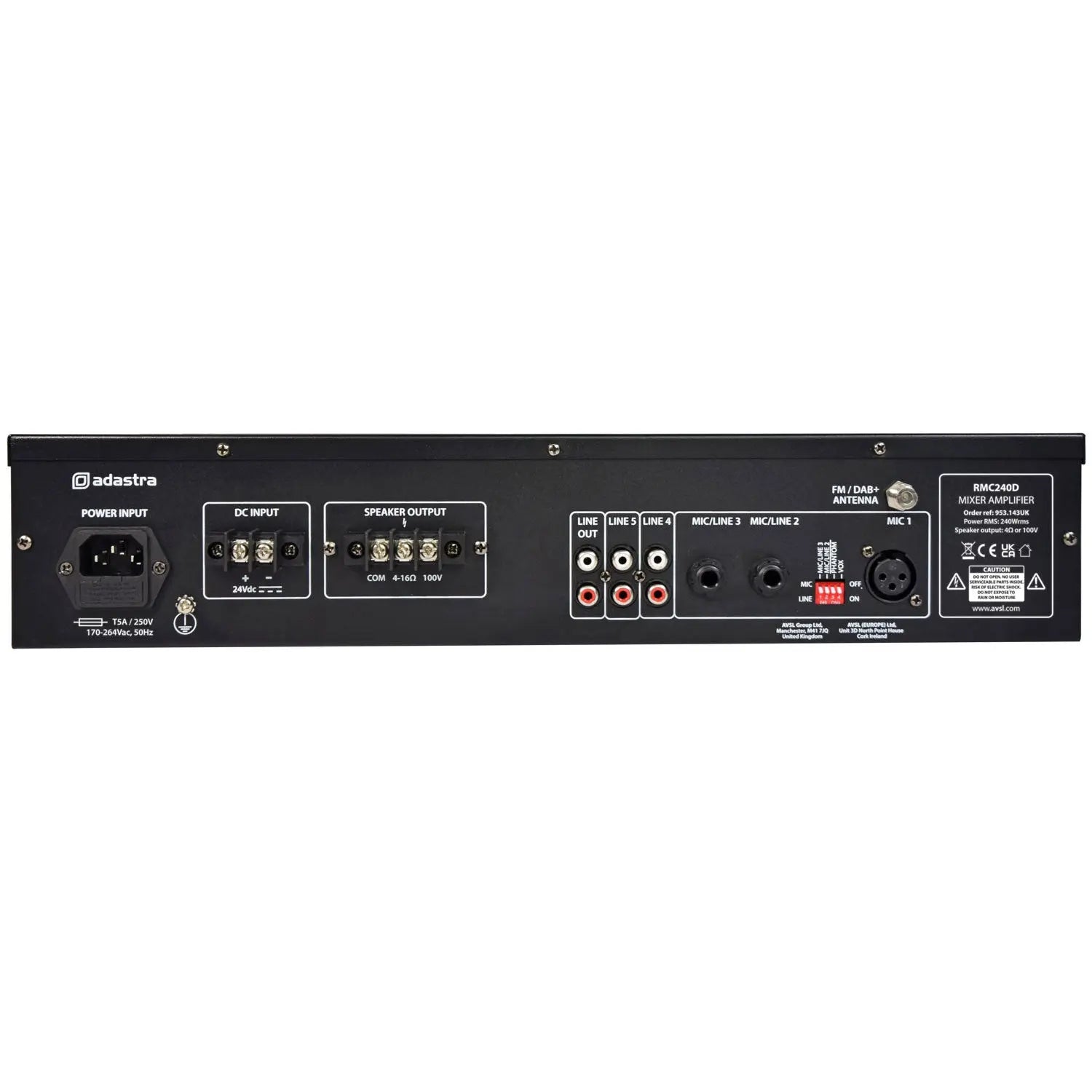

Speaker outputs 100V / 4-16 Ohms / COM terminals
Equaliser : bass 100Hz ±10dB
Equaliser : treble 10kHz ±10dB
Rear panel switches Mic/Line (2 + 3), Phantom, Vox
Phantom power +20V (MIC 1 input)
Bluetooth version 5.0
THD <1.0%
Dimensions 433 x 320 x 89mm
