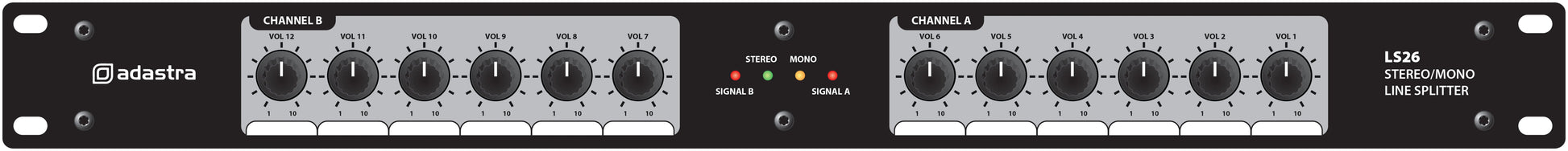

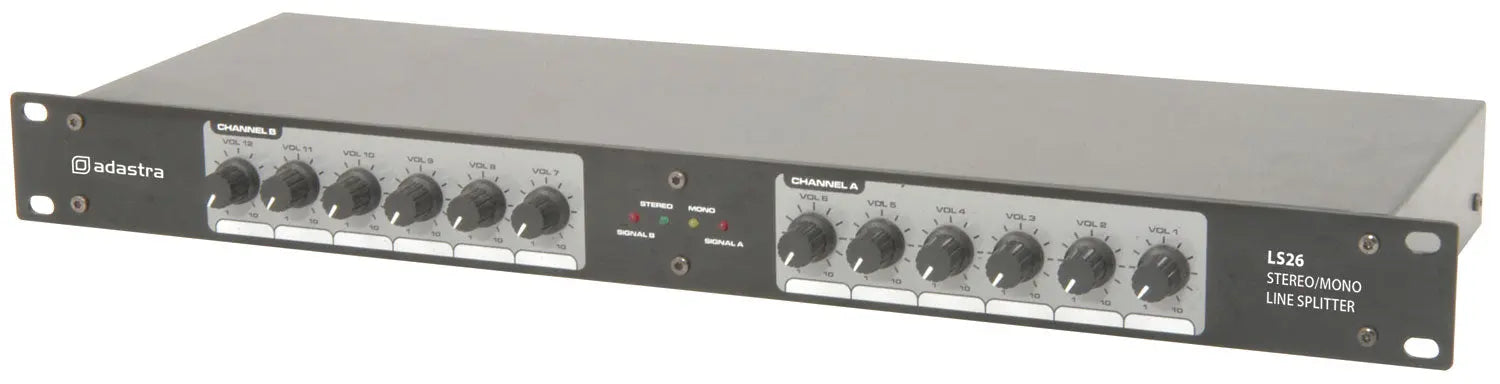

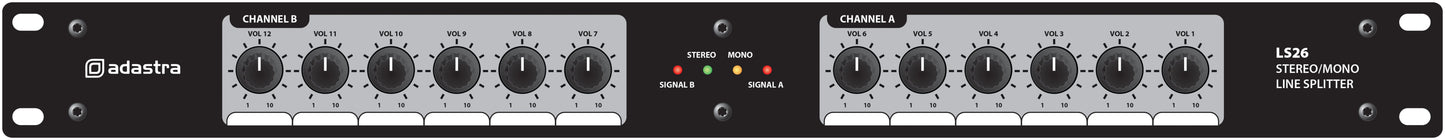

Signal splitter with 2 line inputs which are buffered and divided across 6 outputs each. Can be used as a 6-way stereo splitter or can be switched as a mono system feeding all 12 outputs from input A. Applications include zone mixing, personal monitoring, effects patching and routing in complex recording setups.
Up to 12 outputs from 1 or 2 inputs Individual volume control for each output Input peak LEDs

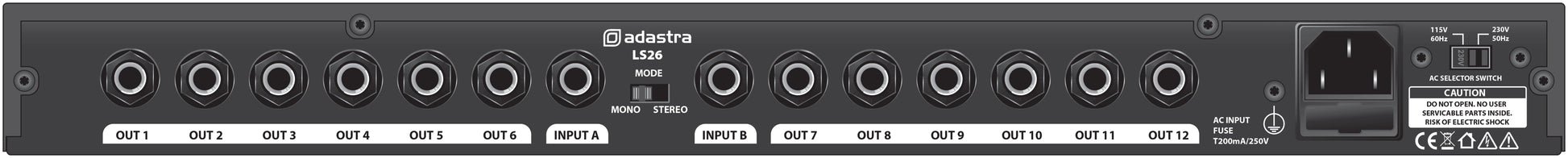

Power supply 115/230Vac, 50/60Hz (IEC) Inputs A & B, (6.3mm jack) Outputs 1 - 6 & 7 - 12 (6.3mm jack) Input impedance 20k Ohms Output impedance 220 Ohms Frequency response 20Hz - 20kHz, +0/-1dB Signal to noise ratio >95dB THD <0.008% Dimensions 483 x 44 x 170mm Weight 2.0kg
