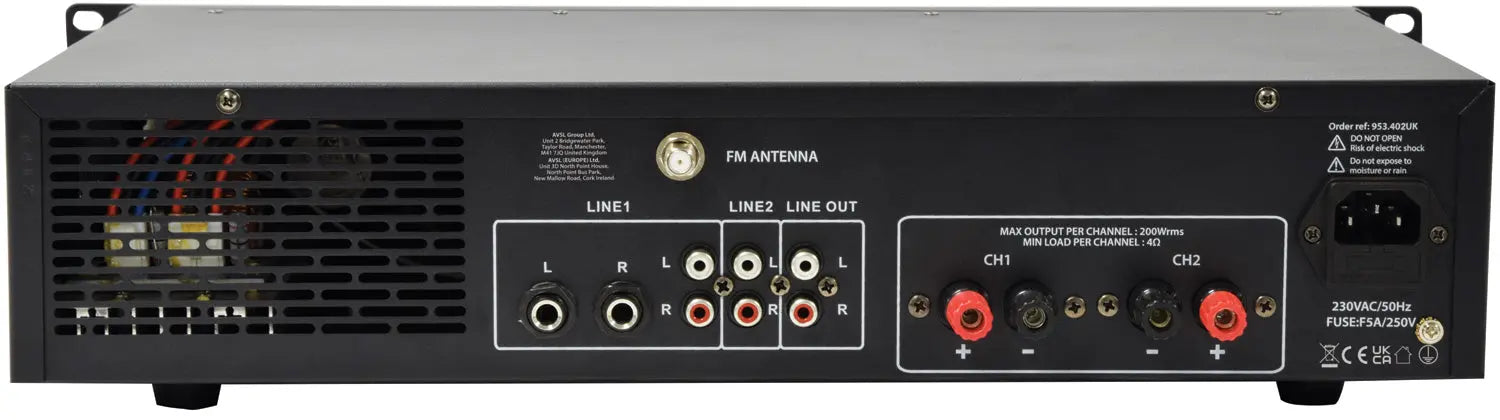

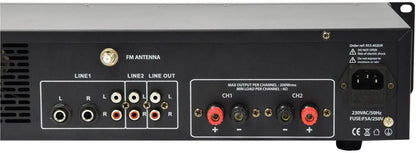

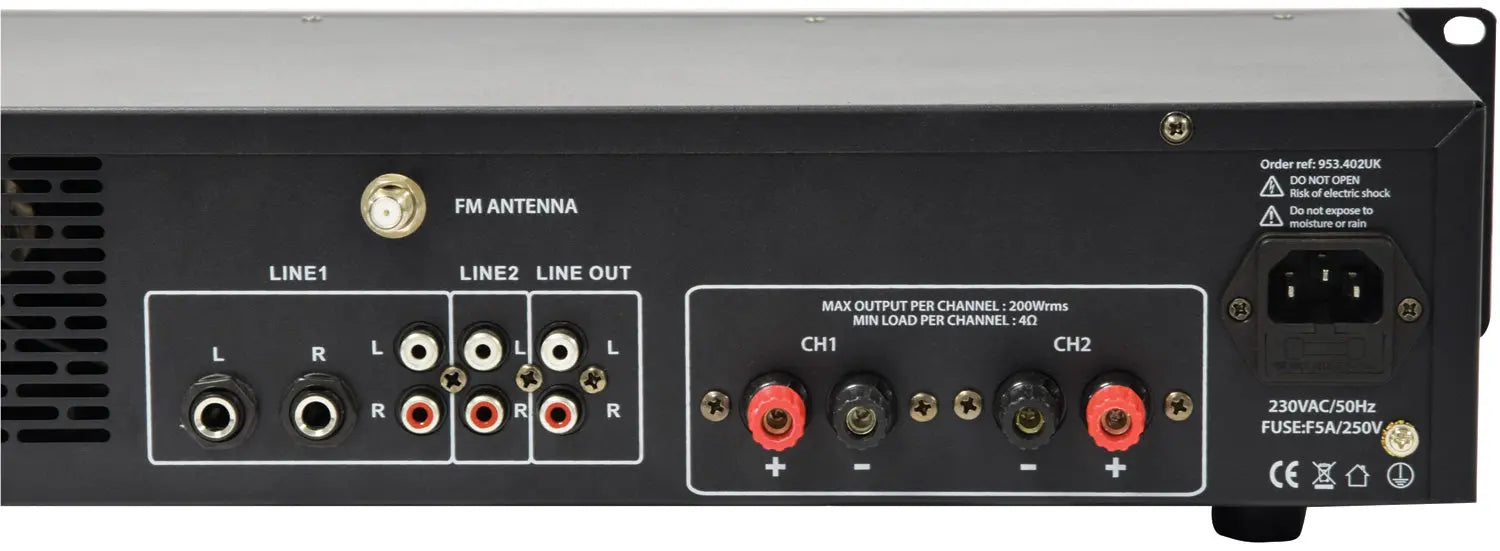

Fully featured stereo amplifier with mixer section for 2 microphones and a stereo audio source. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner. A rotary switch selects between 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers per channel to deliver 2 x 200W. Designed to offer installers a flexible solution for P.A. and music playback in bars, restaurants and function rooms.
Media player with USB/SD playback FM radio tuner with external aerial connection Bluetooth receiver
Power supply 230Vac, 50Hz (IEC) Output power rms @ 8 Ohms 2 x 100W Output power rms @ 4 Ohms 2 x 200W Amplifier : construction Class D Microphone inputs 2 x 6.3mm jack (mono) Auxiliary input 3.5mm stereo jack Line inputs Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA) Audio source USB/SD mp3 playback, FM tuner, BT receiver Protection Thermal, over-current, over-voltage, short-circuit Output controls Source select, Bass, Treble, Ch1, Ch2 Input controls Aux, Media, Line1, Line2, Mic1, Mic2, Talkover Fuse F5A, 250V Speaker outputs 4mm binding posts (2 channels) Line output 2 x RCA Dimensions 482 x 260 x 88mm Weight 5.21kg Antenna connection F type (FM tuner) Frequency response 20Hz - 20kHz ±0.5dB Input sensitivity : aux 0.480Vrms Input sensitivity : line 0.775Vrms THD +N <0.1% Input impedance 20k Ohms (balanced), 10k Ohms (unbalanced) Dynamic range 92dB[b
